MaterialDuctile iron (2-1/2"-6") or steel (1/2"-2")
FinishZinc plated
Trade sizes1/2" - 6"

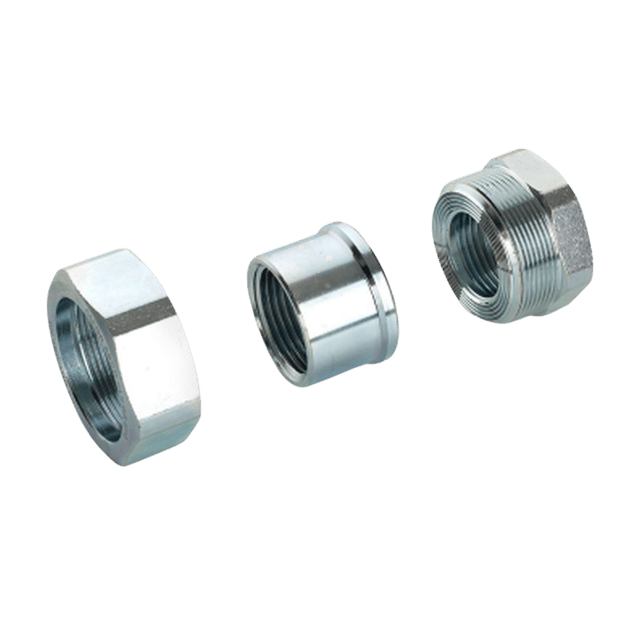

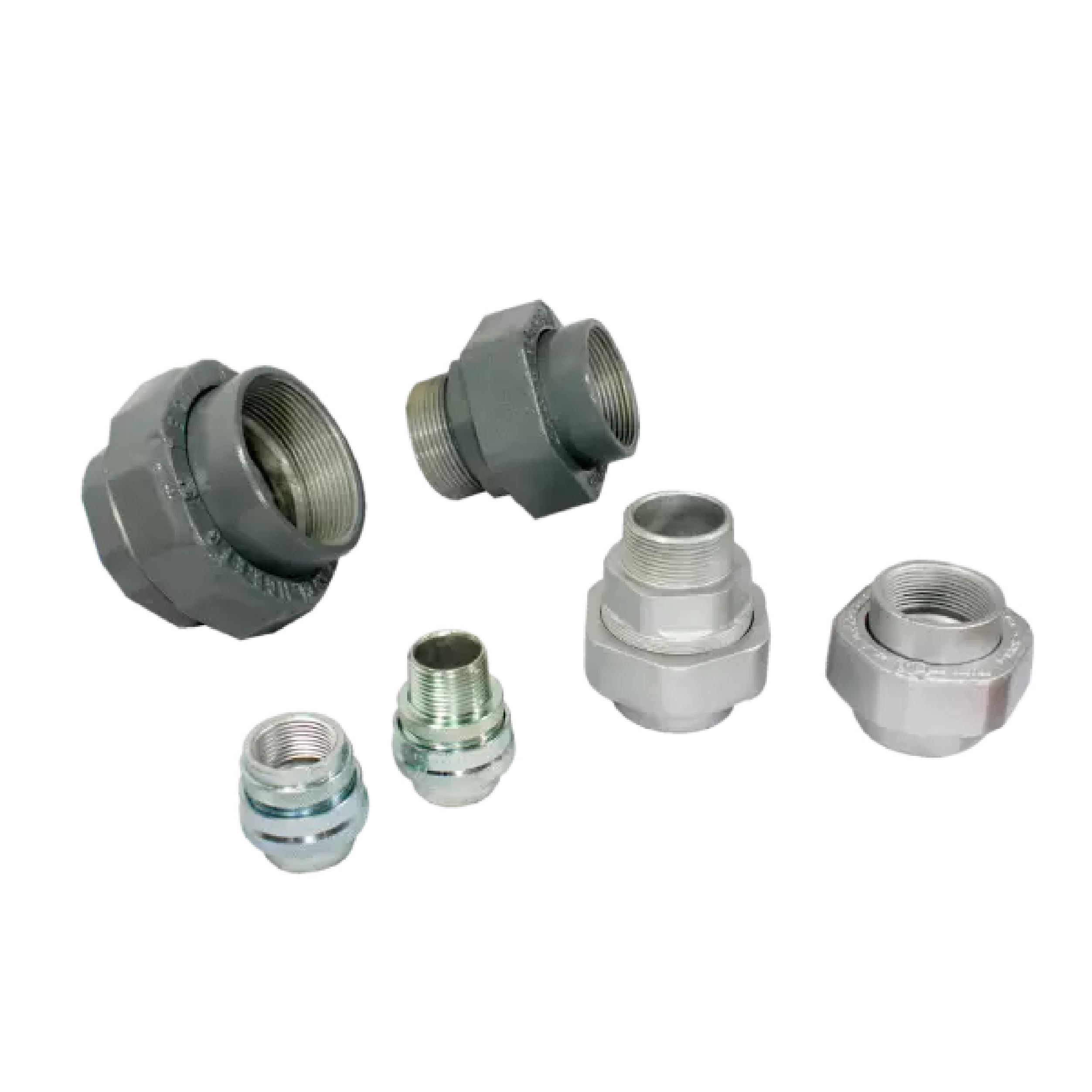

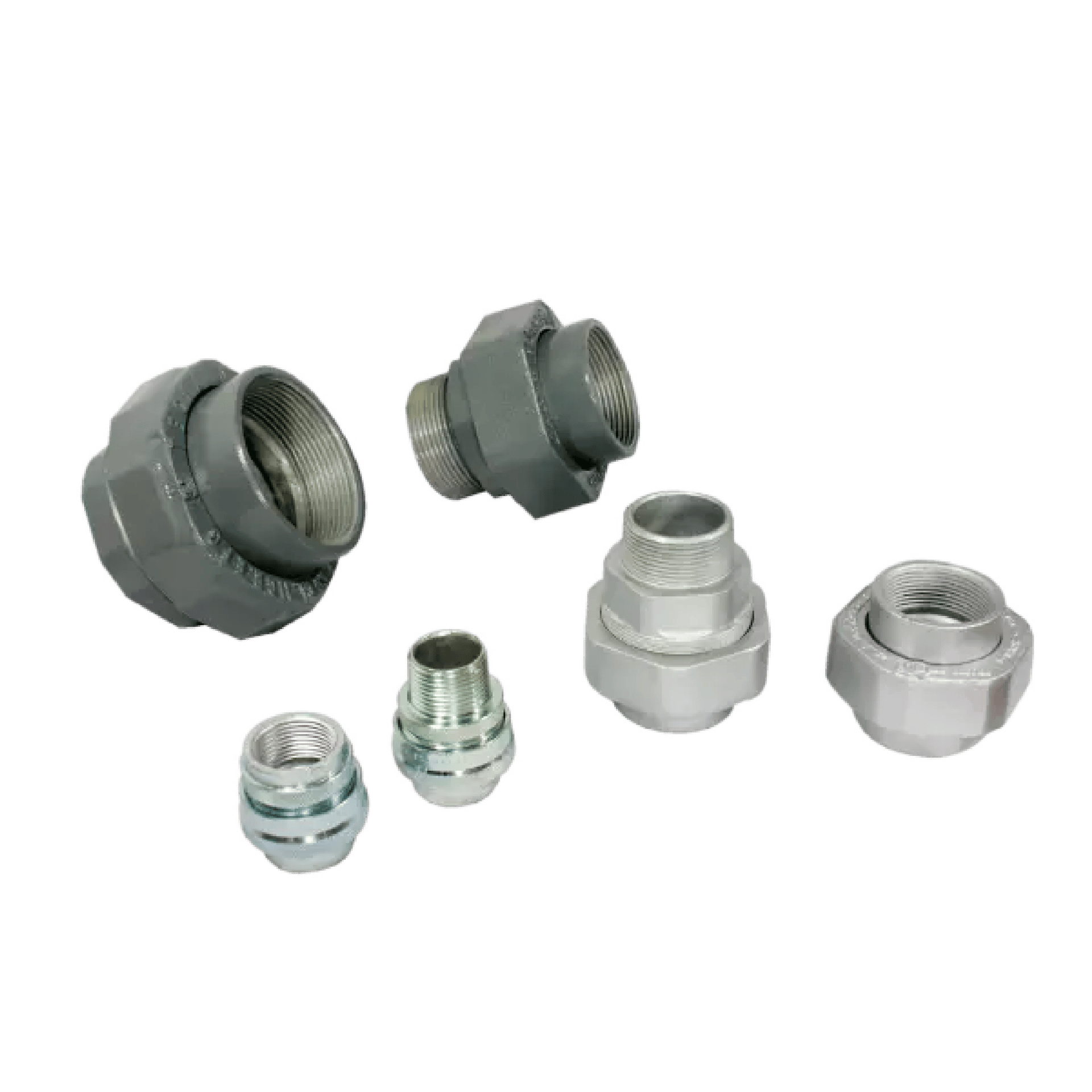

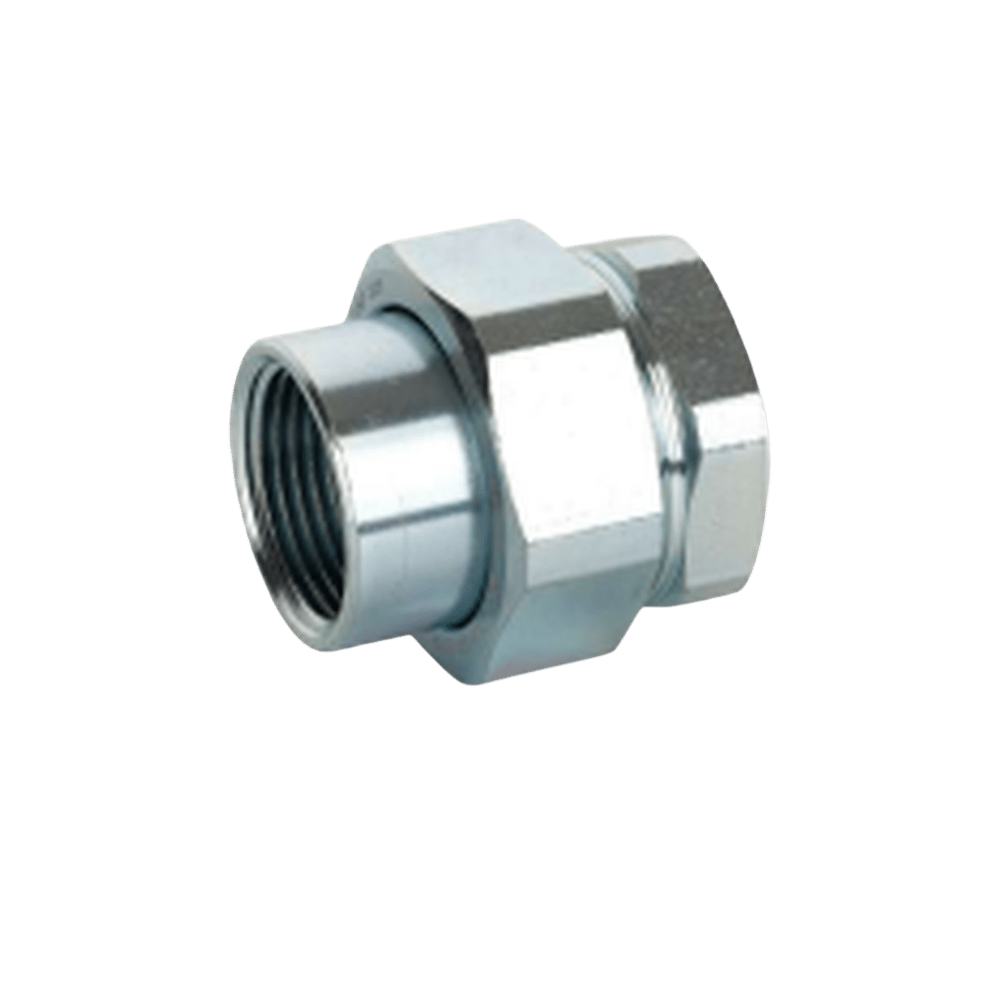

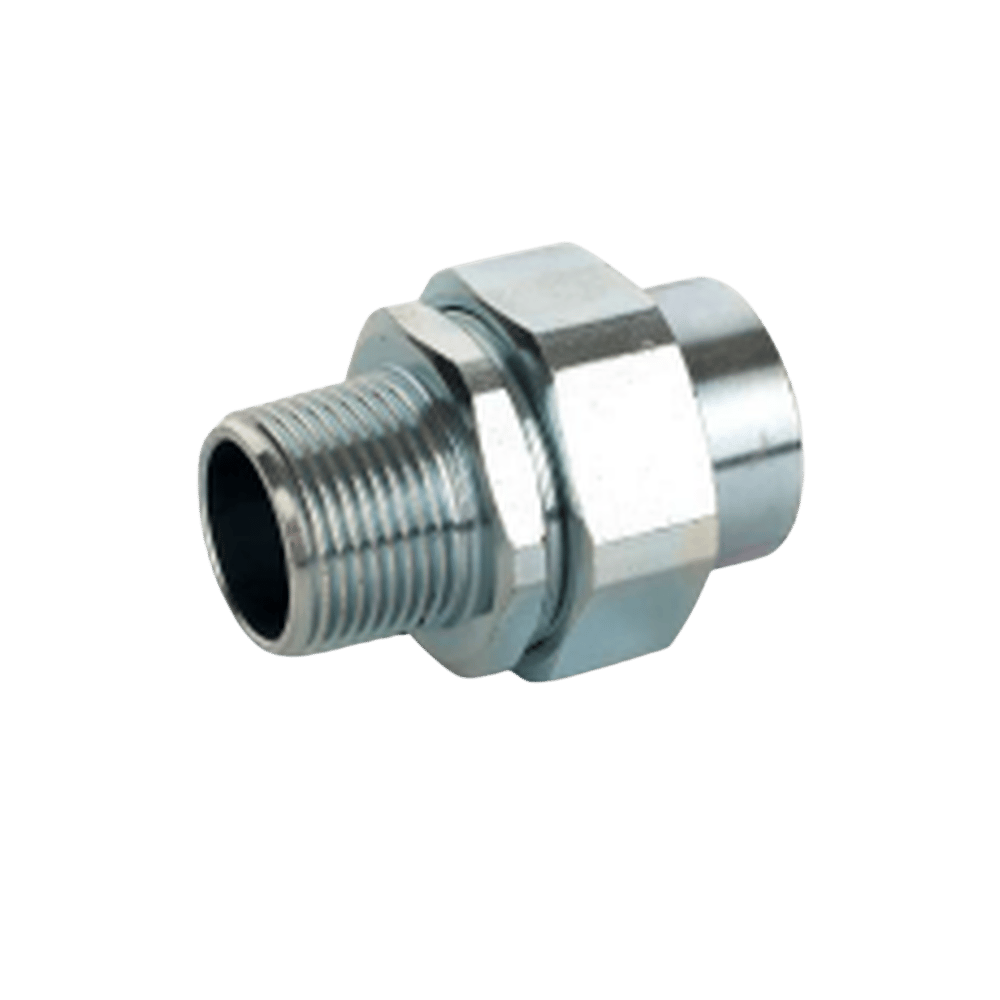

StylesUNY male-to-female, UNF female-to-female
Class IDivision 1 & 2, Groups A, B, C, D
Class IIDivision 1, Groups E, F, G
Class IIIDivision 1 & 2
Classifications shown for this model
Class 1 Division 1Class 1 Division 2Class 2 Division 1Industrial
Catalogue numbers & dimensions
| CAT# | Trade Size | Length | Dia. | |
|---|---|---|---|---|
| Ferrous | Alum. | |||
| UNY15 | UNY15A | 1/2" | 2.39 | 1.50 |
| UNY20 | UNY20A | 3/4" | 2.44 | 1.81 |
| UNY25 | UNY25A | 1" | 2.75 | 2.00 |
| UNY32 | UNY32A | 1-1/4" | 3.06 | 2.75 |
| UNY40 | UNY40A | 1-1/2" | 3.63 | 3.06 |
| UNY50 | UNY50A | 2" | 3.50 | 3.81 |
| UNY65 | UNY65A | 2-1/2" | 4.81 | 4.31 |
| UNY80 | UNY80A | 3" | 5.34 | 5.06 |
| UNY90 | UNY90A | 3-1/2" | 5.50 | 5.69 |
| UNY100 | UNY100A | 4" | 5.63 | 6.19 |
| UNY125 | UNY125A | 5" | 5.25 | 8.19 |
| UNY150 | UNY150A | 6" | 5.38 | 9.31 |
Length and diameter in inches.
| CAT# | Trade Size | Length | Dia. | |
|---|---|---|---|---|
| Ferrous | Alum. | |||
| UNF15 | UNF15A | 1/2" | 1.88 | 1.50 |
| UNF20 | UNF20A | 3/4" | 2.13 | 1.81 |
| UNF25 | UNF25A | 1" | 2.16 | 2.00 |
| UNF32 | UNF32A | 1-1/4" | 2.25 | 2.75 |
| UNF40 | UNF40A | 1-1/2" | 2.75 | 3.06 |
| UNF50 | UNF50A | 2" | 2.50 | 3.81 |
| UNF65 | UNF65A | 2-1/2" | 3.50 | 4.31 |
| UNF80 | UNF80A | 3" | 4.00 | 5.06 |
| UNF90 | UNF90A | 3-1/2" | 4.16 | 5.69 |
| UNF100 | UNF100A | 4" | 4.25 | 6.19 |
| UNF125 | UNF125A | 5" | 3.81 | 8.19 |
| UNF150 | UNF150A | 6" | 3.81 | 9.31 |
Length and diameter in inches.
No public file is currently linked to this product. You can request the record for your configuration below.
Configuration-specific records
Request the exact record for your project
Documents can vary by catalogue number. Each request sends the product, your current configuration and the record type to our technical team.
Request the installation manual
Ask for instructions applicable to the selected model, mounting method and voltage.
Request a 2D/3D CAD model
Ask for the available dimensional drawing or 3D model for the exact catalogue number.
Request certification documents
Ask for the certification documents for the exact model you need.
Request a complete technical submittal
Ask our team to assemble the available data sheets, drawings, photometry and certification records.
Related Models
Related Electrical Products
Other LEDEX models worth comparing, with their classifications and output levels.
Frequently Asked Questions
What engineers and distributors ask most often before specifying the UNY/UNF.
Explosion-proof lighting uses a certified enclosure or protection method to keep an ignition inside the equipment from reaching a surrounding explosive gas or vapour atmosphere. The term does not make a fixture suitable for every hazardous location. Under CEC Section 18, the exact product must match the documented Zone or Division, gas or dust group, surface-temperature limit, ambient range and wiring method.
