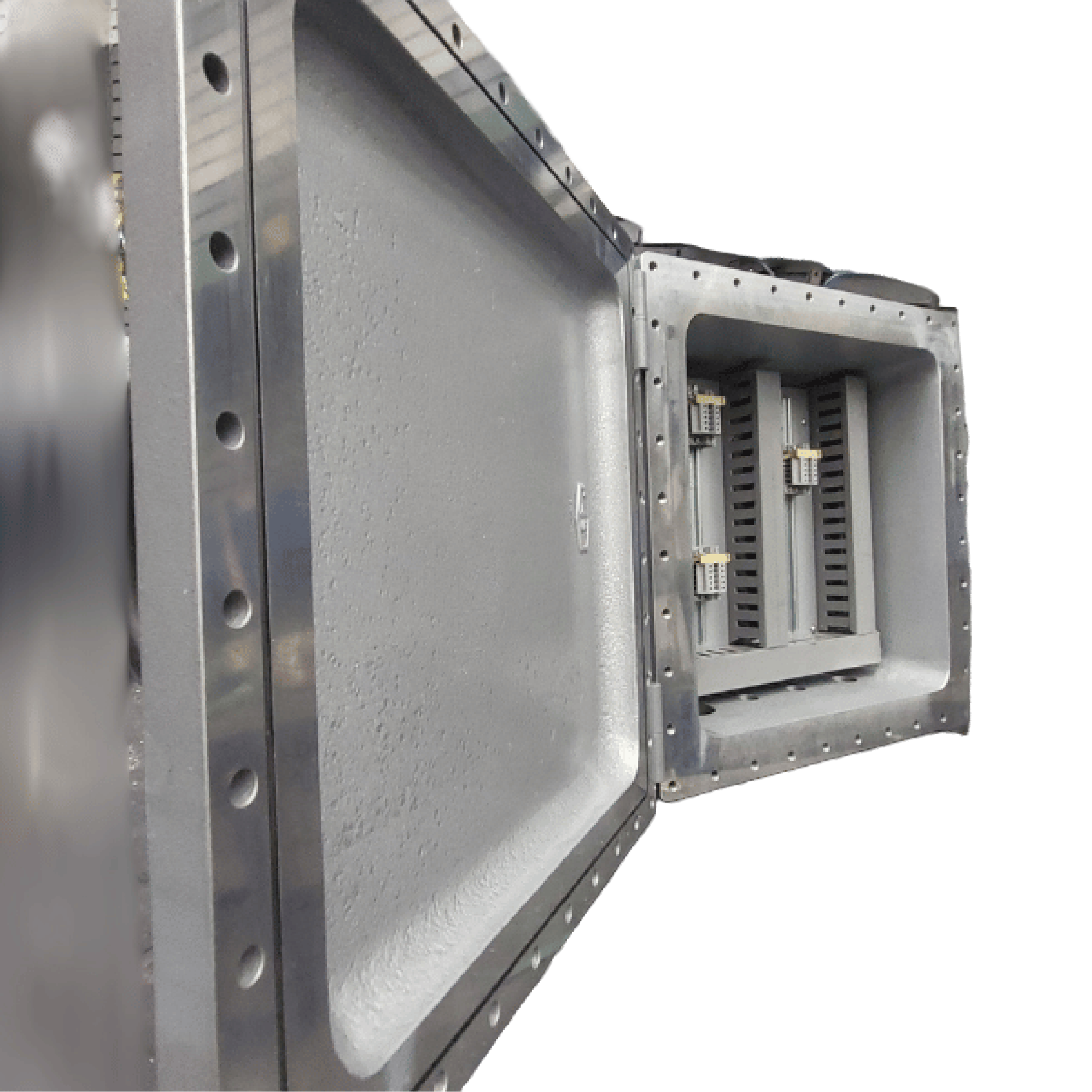

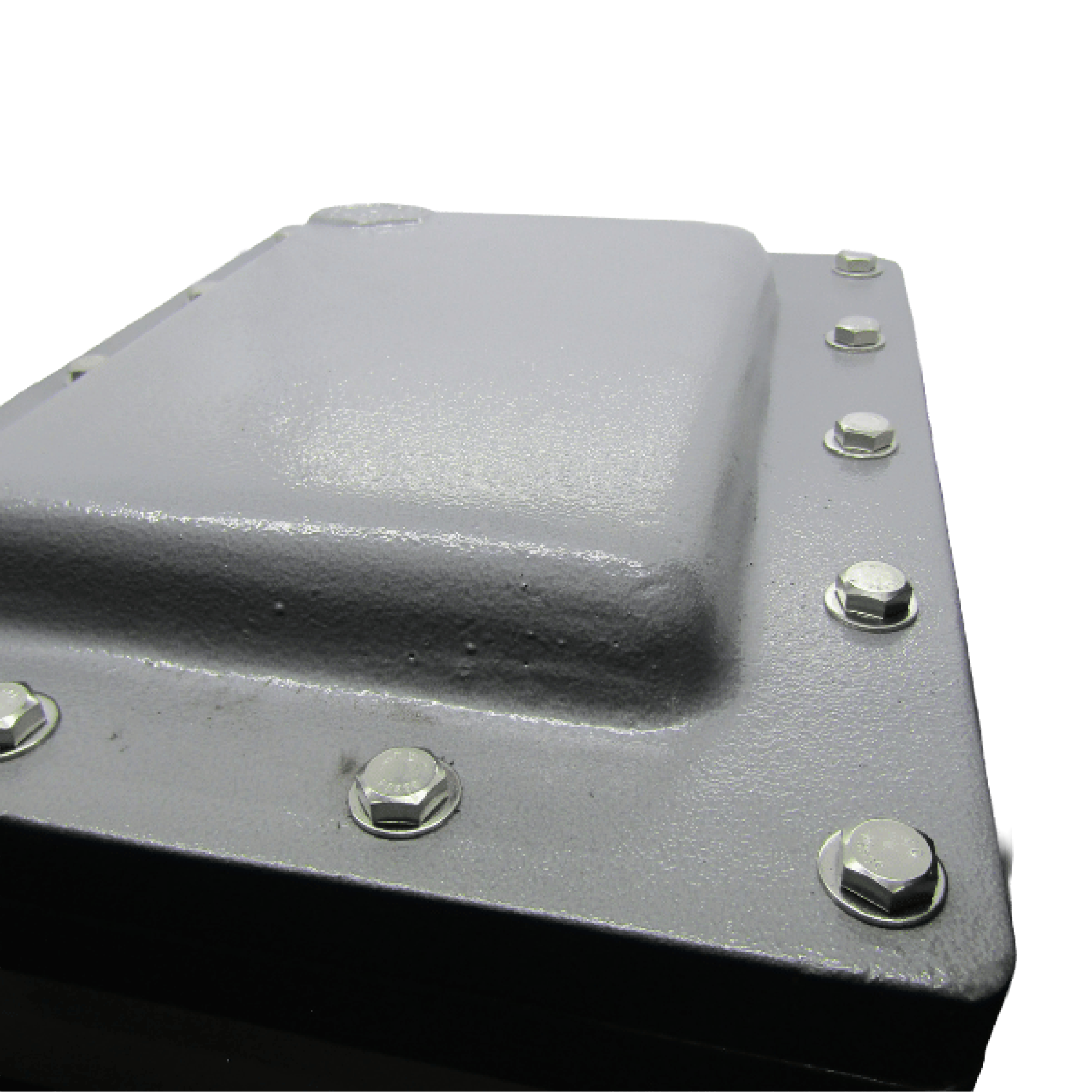

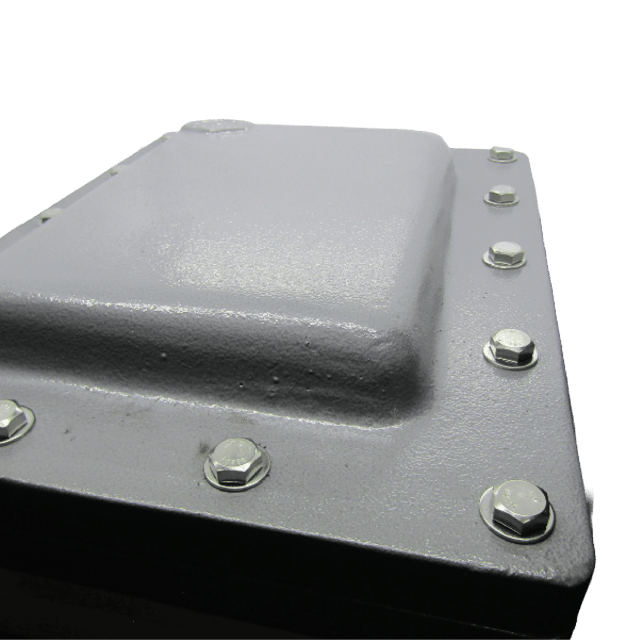

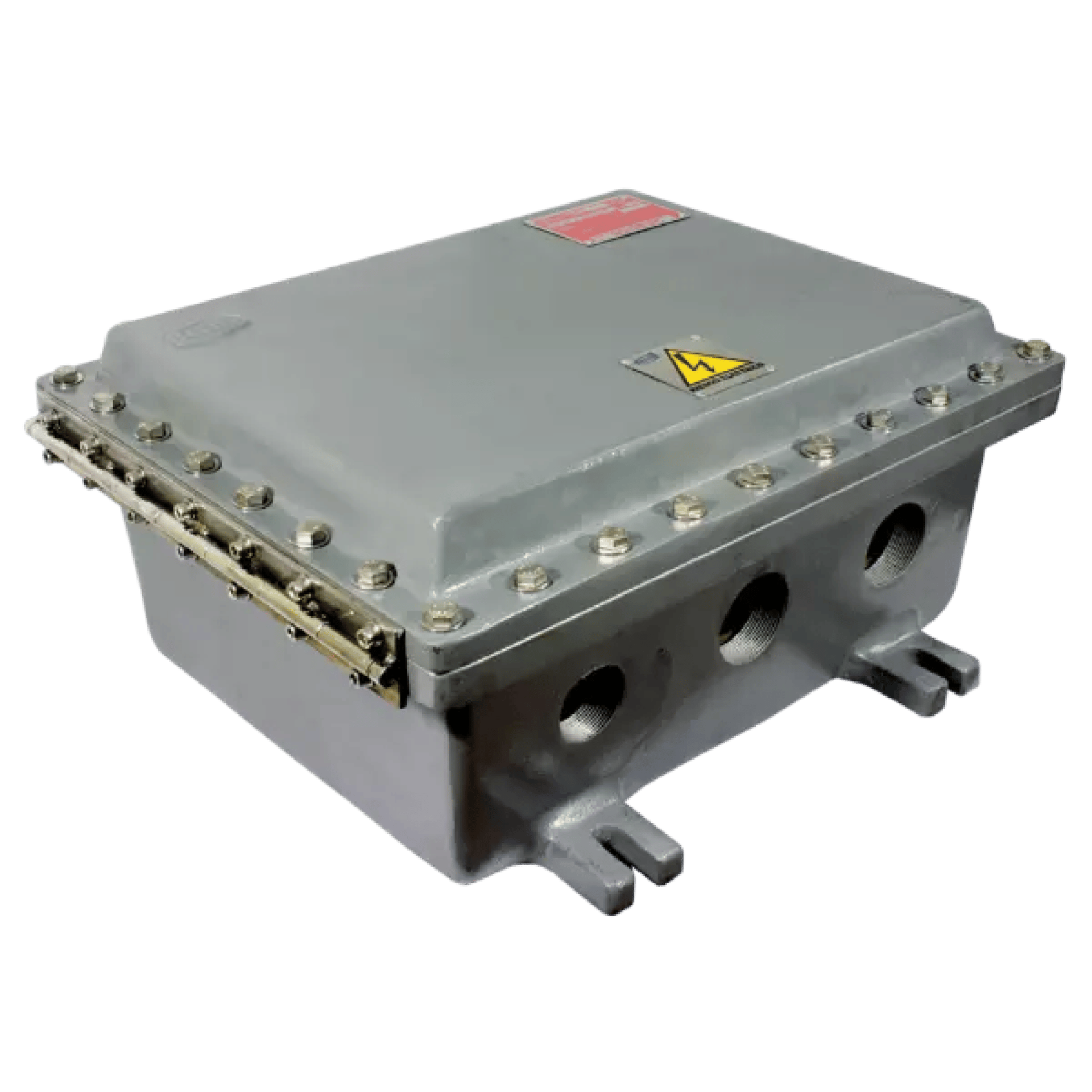

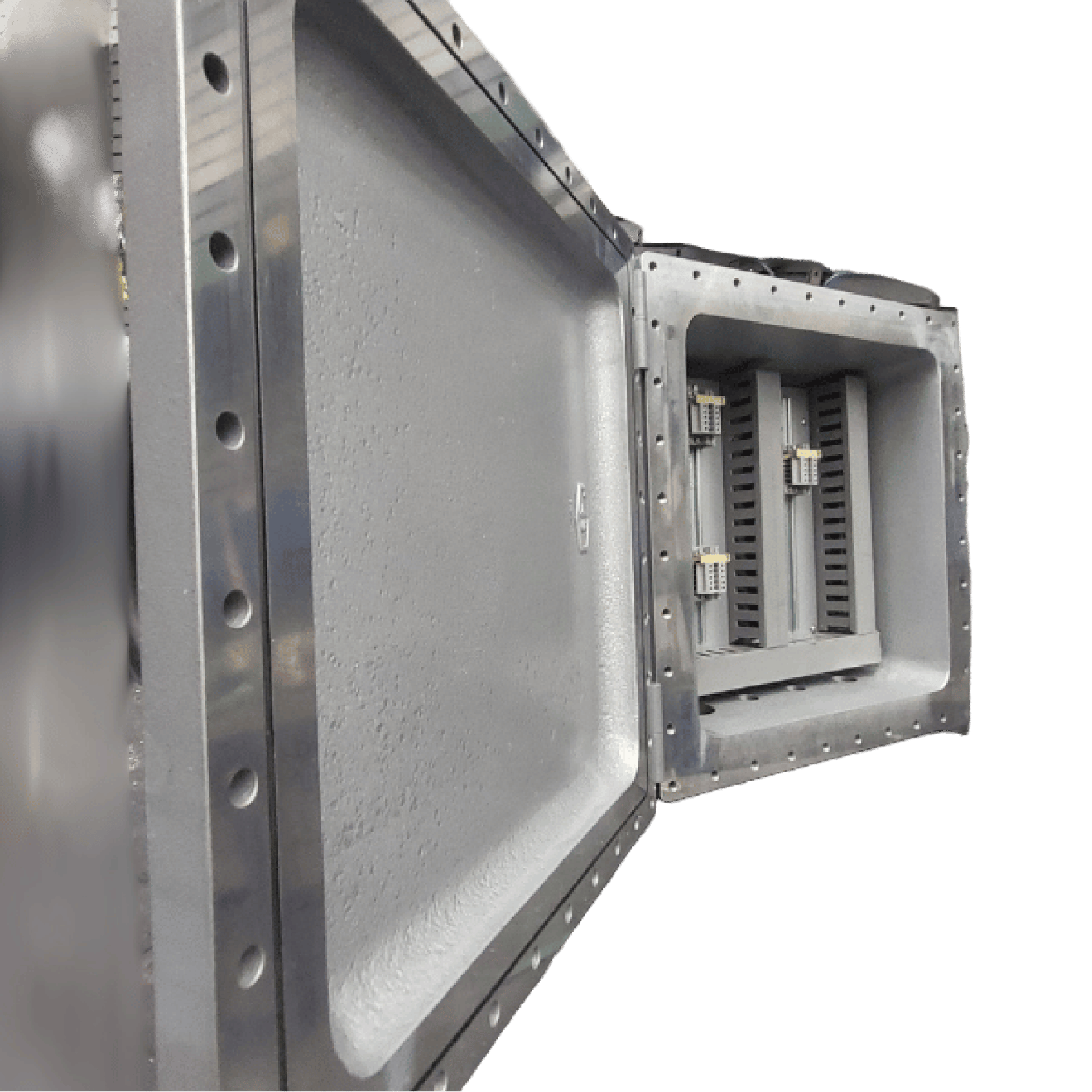

ConstructionAluminum casting, low iron and copper content
Size range6" through 33"
EntriesNPT 1/2" through 4", factory tapped
GasketO-ring for outdoor use
MountingLugs; hinges according to size
HardwareStainless steel
GroundingBronze ground, aluminum sheet mounting tray
FinishHammered grey polyester exterior, hammered grey enamel interior
Ingress protectionIP66
StandardsUL 1203 · UL 50 · NEC art. 500-503 · IEC 60529
Class IDivision 1 & 2, Groups C, D
Class IIGroups E, F, G
Class IIIClass III
Classifications shown for this model
Class 1 Division 1Class 1 Division 2Class 2 Division 1Industrial
Catalogue numbers & dimensions
| Dimensions | Max NPT (in) | CAT# | Cert. | Weight (kg) | ||
|---|---|---|---|---|---|---|
| Internal (L×W×H in) | L×W×H (mm) | Internal with ribs (mm) | ||||
| 6"x4"x4" | 154x105x102 | - | 2 | SX7E 644 | cULus | 6,1 |
| 6"x6"x4" | 154x154x107 | - | 2 | SX7E 664 | cULus | 8,6 |
| 6"x6"x6" | 154x154x150 | - | 2 | SX7E 666 | cULus | 9,0 |
| 8"x6"x4" | 205x152x105 | - | 2 | SX7E 864 | cULus | 11,0 |
| 8"x8"x3" | 220x218x87 | - | 2 | SX7E 883 | cULus | 94,0 |
| 8"x8"x4" | 204x205x108 | - | 2 | SX7E 884 | cULus | 11,0 |
| 8"x8"x8" | 205x204x200 | - | 2 | SX7E 888 | cULus | 13,0 |
| 10"x6"x6" | 252x152x155 | - | 2 | SX7E A66 | cULus | 13,5 |
| 8"x6"x6" | 207x156x152 | - | 4 | SX7E 866 | cULus | 11,3 |
| 10"x10"x6" | 261x258x154 | - | 4 | SX7E AA6 | cULus | 20,5 |
| 12"x5"x6" | 300x136x157 | - | 4 | SX7E C56 | cULus | 17,0 |
| 28"x16"x8" | 716x410x200 | 716x346x174 | 4 | SX7E SG8 | ULus | 97,5 |
| 28"x16"x13" | 716x410x355 | 716x340x329 | 4 | SX7E SGD | ULus | 125,8 |
| 33"x12"x13" | 839x316x343 | 839x246x317 | 4 | SX7 XCD | ULus | 151,0 |
All dimensions and weights are approximate.
No public file is currently linked to this product. You can request the record for your configuration below.
Configuration-specific records
Request the exact record for your project
Documents can vary by catalogue number. Each request sends the product, your current configuration and the record type to our technical team.
Request the installation manual
Ask for instructions applicable to the selected model, mounting method and voltage.
Request a 2D/3D CAD model
Ask for the available dimensional drawing or 3D model for the exact catalogue number.
Request certification documents
Ask for the certification documents for the exact model you need.
Request a complete technical submittal
Ask our team to assemble the available data sheets, drawings, photometry and certification records.
