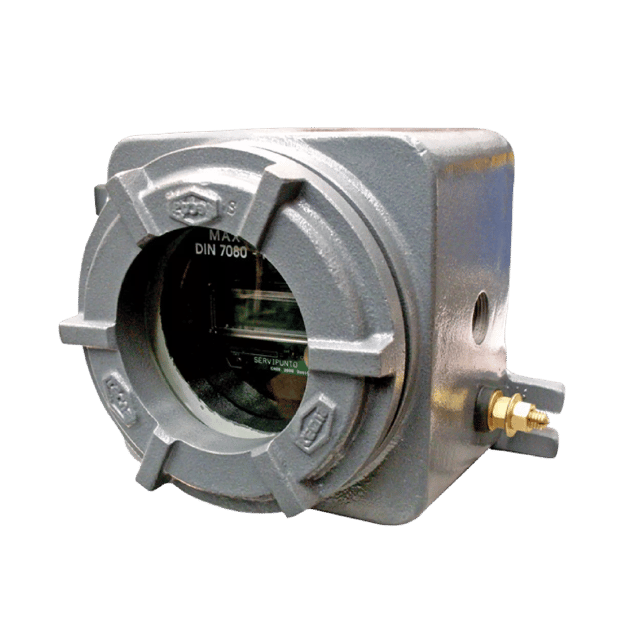

ConstructionAluminum casting, low iron and copper content
CoverLarge-diameter threaded cover

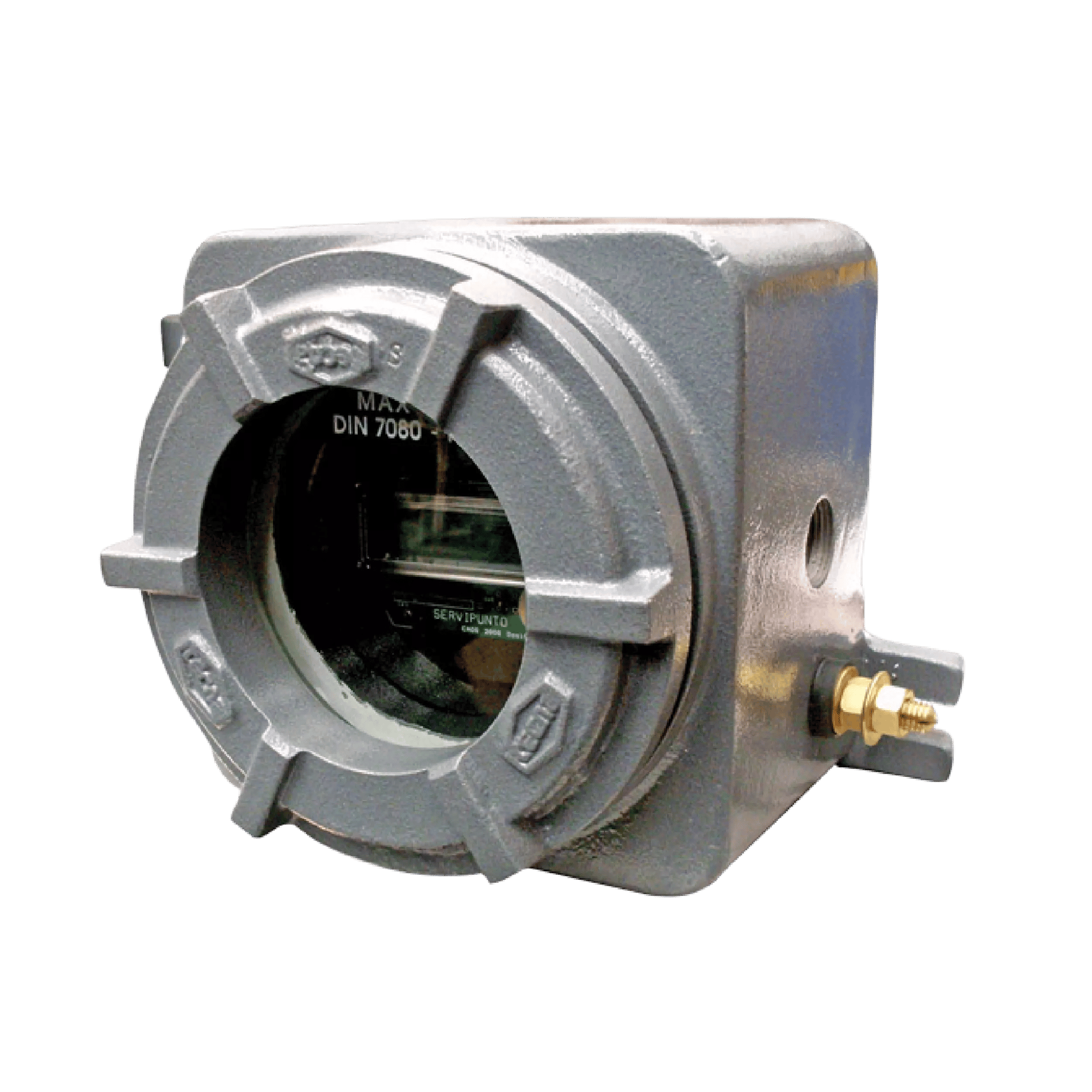

Cover typesBlind flat, flat with sight glass, blind dome, dome with sight glass
Sight glassTempered glass, 45 / 80 / 125 mm
FinishHammered grey polyester exterior, hammered grey enamel interior
MountingSlotted lugs
EntriesNPT, factory tapped to suit the installation
Ingress protectionIP66
StandardsUL 1203 · UL 50 · NEC art. 500-503 · IEC 60529
Class IDivision 1 & 2, Groups C, D
Class IIGroups E, F, G
Class IIIClass III
Instrument optionsAmmeter, voltmeter, wattmeter, hour meter, photocell (specify)
Classifications shown for this model
Class 1 Division 1Class 1 Division 2Class 2 Division 1Industrial
Catalogue numbers & dimensions
| Dim. (mm) | Max NPT (in) | CAT# | Cert. |
|---|---|---|---|
| 148x148x130 | 2 | SX9GUB1A | cULus |
| 198x219x138 | 2 | SX9GUB2A | cULus |
| 244x270x161 | 4 | SX9GUB3A | cULus |
Dimensions given as L×W×H in millimetres. All dimensions and weights are approximate.
| Dim. (mm) | Max NPT (in) | CAT# | Cert. |
|---|---|---|---|
| 148x148x130 | 2 | SX9GUBD1A | cULus |
| 198x219x138 | 2 | SX9GUBD2A | cULus |
Dimensions given as L×W×H in millimetres. All dimensions and weights are approximate.
| Dim. (mm) | Max NPT (in) | Glass Ø (mm) | CAT# | Cert. |
|---|---|---|---|---|
| 148x148x130 | 2 | 45 | SX9GUBW1A-45 | cULus |
| 198x219x138 | 2 | 80 | SX9GUBW2A-80 | cULus |
| 244x270x161 | 4 | 125 | SX9GUBW3A-125 | cULus |
Dimensions given as L×W×H in millimetres. All dimensions and weights are approximate.
| Dim. (mm) | Max NPT (in) | Glass Ø (mm) | CAT# | Cert. |
|---|---|---|---|---|
| 148x148x130 | 2 | 45 | SX9GUBDW1A-45 | cULus |
| 198x219x138 | 2 | 80 | SX9GUBDW2A-80 | cULus |
Dimensions given as L×W×H in millimetres. All dimensions and weights are approximate.
No public file is currently linked to this product. You can request the record for your configuration below.
Configuration-specific records
Request the exact record for your project
Documents can vary by catalogue number. Each request sends the product, your current configuration and the record type to our technical team.
Request the installation manual
Ask for instructions applicable to the selected model, mounting method and voltage.
Request a 2D/3D CAD model
Ask for the available dimensional drawing or 3D model for the exact catalogue number.
Request certification documents
Ask for the certification documents for the exact model you need.
Request a complete technical submittal
Ask our team to assemble the available data sheets, drawings, photometry and certification records.
