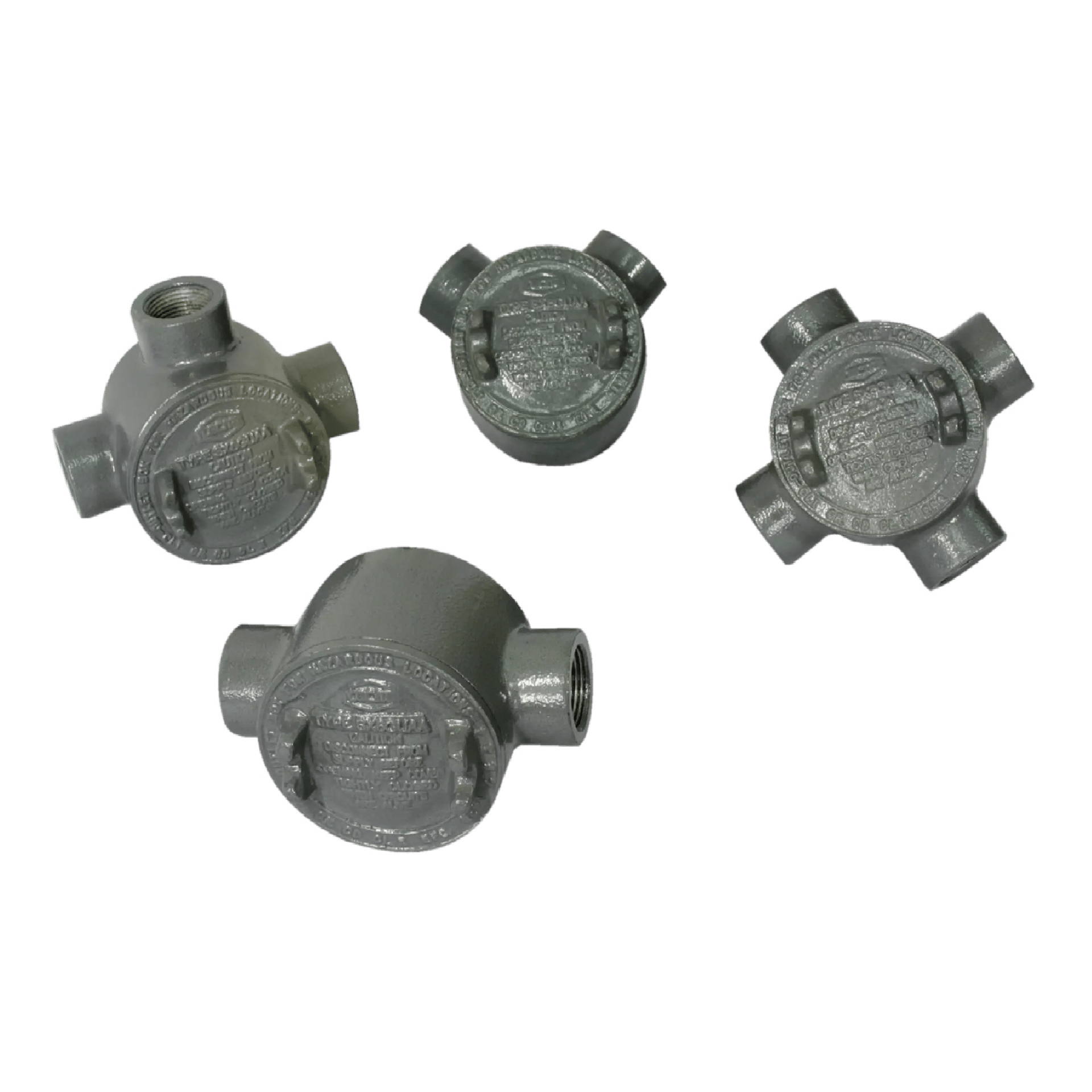

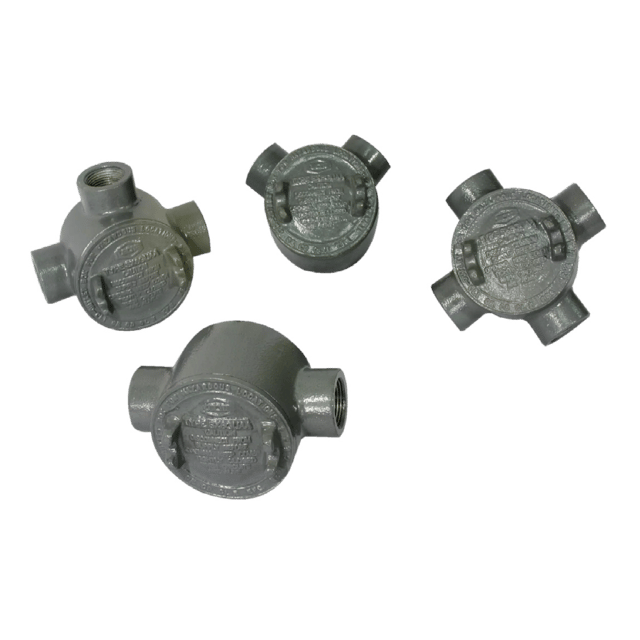

ConstructionCast iron alloy body, cast aluminum cover (iron covers available)
GasketNeoprene O-ring, standard
GroundingInternal green grounding screw, standard
Trade sizes1/2" - 2"
Cover openings2", 3", 3-5/8", 5"
Hub arrangementsGUA, GUAB, GUAC, GUAW, GUAL, GUAN, GUAT, GUAX
Class IDivision 1 & 2, Groups C, D
Class IIDivision 1, Groups E, F, G; Division 2, Groups F, G
Class IIIClass III
Classifications shown for this model
Class 1 Division 1Class 1 Division 2Class 2 Division 1Industrial
Catalogue numbers & dimensions
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUA14 | GUA14A | 1/2" | 2" |
| GUA24 | GUA24A | 3/4" | 2" |
| GUA16 | GUA16A | 1/2" | 3" |
| GUA26 | GUA26A | 3/4" | 3" |
| GUA36 | GUA36A | 1" | 3" |
| GUA47 | GUA47A | 1-1/4" | 3-5/8" |
| GUA59 | GUA59A | 1-1/2" | 5" |
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUAB14 | GUAB14A | 1/2" | 2" |
| GUAB16 | GUAB16A | 1/2" | 3" |
| GUAB24 | GUAB24A | 3/4" | 2" |
| GUAB26 | GUAB26A | 3/4" | 3" |
| GUAB36 | GUAB36A | 1" | 3" |
| GUAB47 | GUAB47A | 1-1/4" | 3-5/8" |
| GUAB59 | GUAB59A | 1-1/2" | 5" |
| GUAB69 | GUAB69A | 2" | 5" |
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUAC14 | GUAC14A | 1/2" | 2" |
| GUAC16 | GUAC16A | 1/2" | 3" |
| GUAC24 | GUAC24A | 3/4" | 2" |
| GUAC26 | GUAC26A | 3/4" | 3" |
| GUAC36 | GUAC36A | 1" | 3" |
| GUAC47 | GUAC47A | 1-1/4" | 3-5/8" |
| GUAC49 | GUAC49A | 1-1/4" | 5" |
| GUAC59 | GUAC59A | 1-1/2" | 5" |
| GUAC69 | GUAC69A | 2" | 5" |
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUAW14 | GUAW14A | 1/2" | 2" |
| GUAW16 | GUAW16A | 1/2" | 3" |
| GUAW24 | GUAW24A | 3/4" | 2" |
| GUAW26 | GUAW26A | 3/4" | 3" |
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUAL14 | GUAL14A | 1/2" | 2" |
| GUAL16 | GUAL16A | 1/2" | 3" |
| GUAL24 | GUAL24A | 3/4" | 2" |
| GUAL26 | GUAL26A | 3/4" | 3" |
| GUAL36 | GUAL36A | 1" | 3" |
| GUAL47 | GUAL47A | 1-1/4" | 3-5/8" |
| GUAL49 | GUAL49A | 1-1/4" | 5" |
| GUAL59 | GUAL59A | 1-1/2" | 5" |
| GUAL69 | GUAL69A | 2" | 5" |
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUAN14 | GUAN14A | 1/2" | 2" |
| GUAN16 | GUAN16A | 1/2" | 3" |
| GUAN24 | GUAN24A | 3/4" | 2" |
| GUAN26 | GUAN26A | 3/4" | 3" |
| GUAN36 | GUAN36A | 1" | 3" |
| GUAN47 | GUAN47A | 1-1/4" | 3-5/8" |
| GUAN59 | GUAN59A | 1-1/2" | 5" |
| GUAN69 | GUAN69A | 2" | 5" |
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUAT15 | GUAT15A | 1/2" | 2" |
| GUAT16 | GUAT16A | 1/2" | 3" |
| GUAT24 | GUAT24A | 3/4" | 2" |
| GUAT26 | GUAT26A | 3/4" | 3" |
| GUAT36 | GUAT36A | 1" | 3" |
| GUAT47 | GUAT47A | 1-1/4" | 3-5/8" |
| GUAT59 | GUAT59A | 1-1/2" | 5" |
| GUAT69 | GUAT69A | 2" | 5" |
| CAT# | Trade Size | Cover Opening | |
|---|---|---|---|
| Ferrous | Alum. | ||
| GUAX14 | GUAX14A | 1/2" | 2" |
| GUAX16 | GUAX16A | 1/2" | 3" |
| GUAX24 | GUAX24A | 3/4" | 2" |
| GUAX26 | GUAX26A | 3/4" | 3" |
| GUAX36 | GUAX36A | 1" | 3" |
| GUAX47 | GUAX47A | 1-1/4" | 3-5/8" |
| GUAX59 | GUAX59A | 1-1/2" | 5" |
| GUAX69 | GUAX69A | 2" | 5" |
