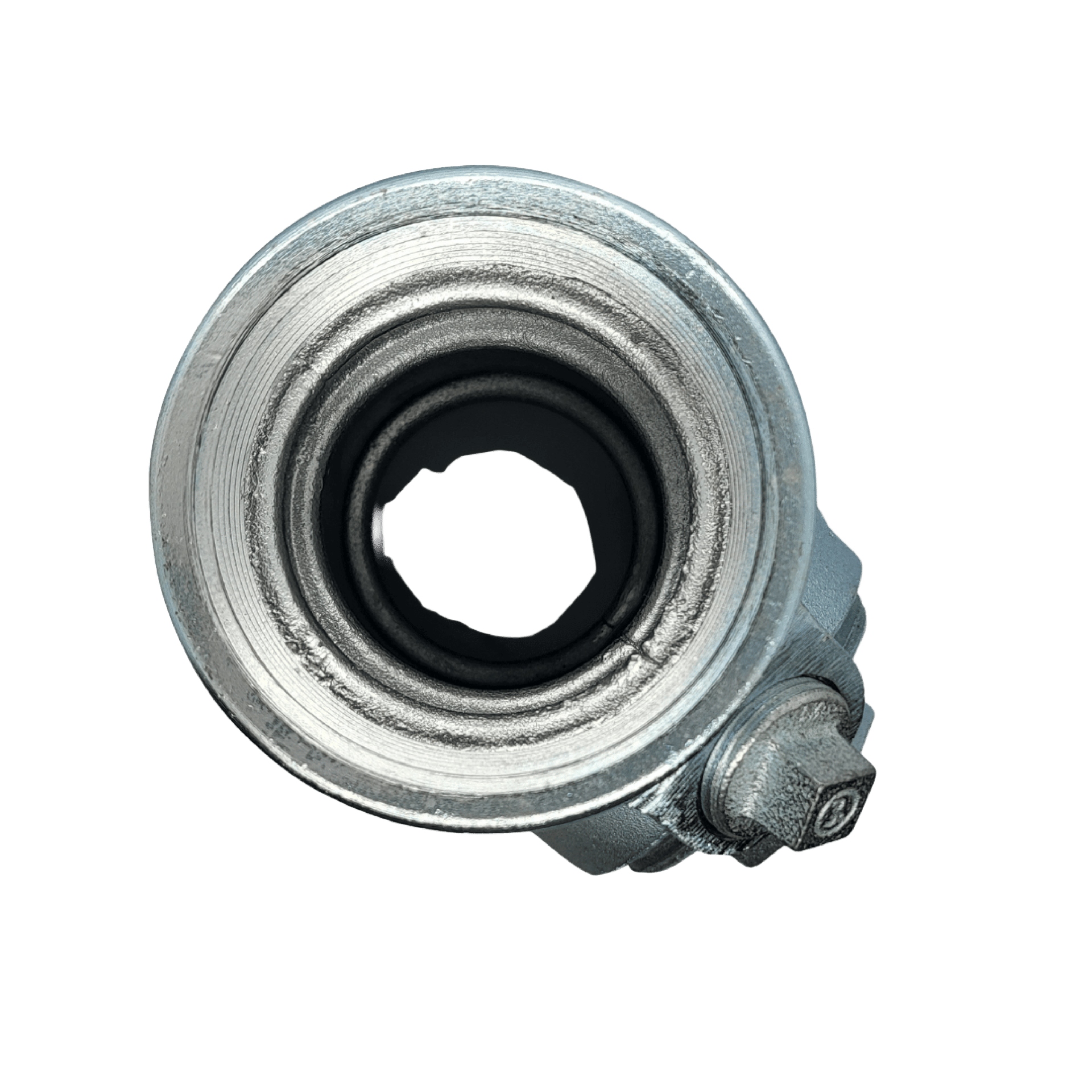

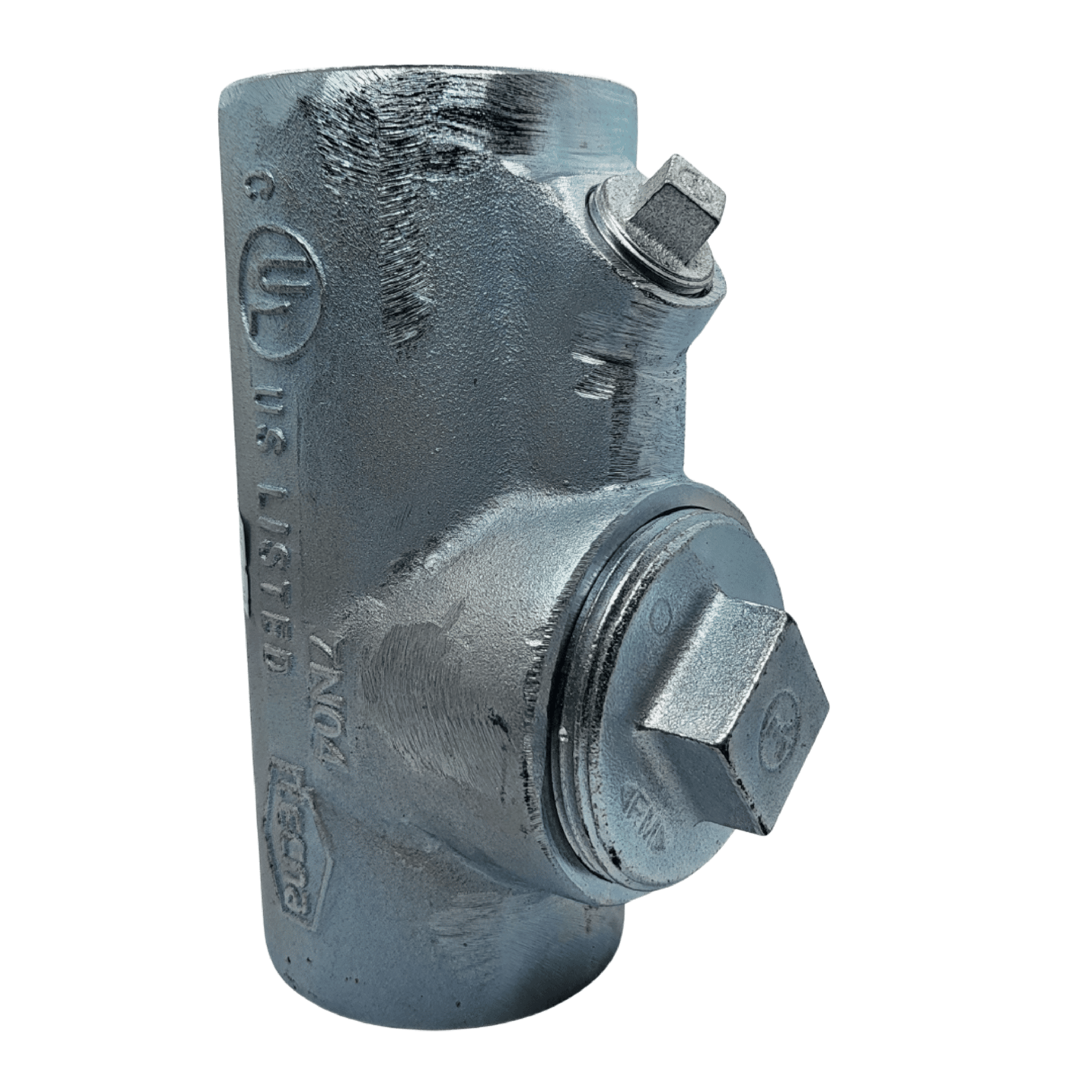

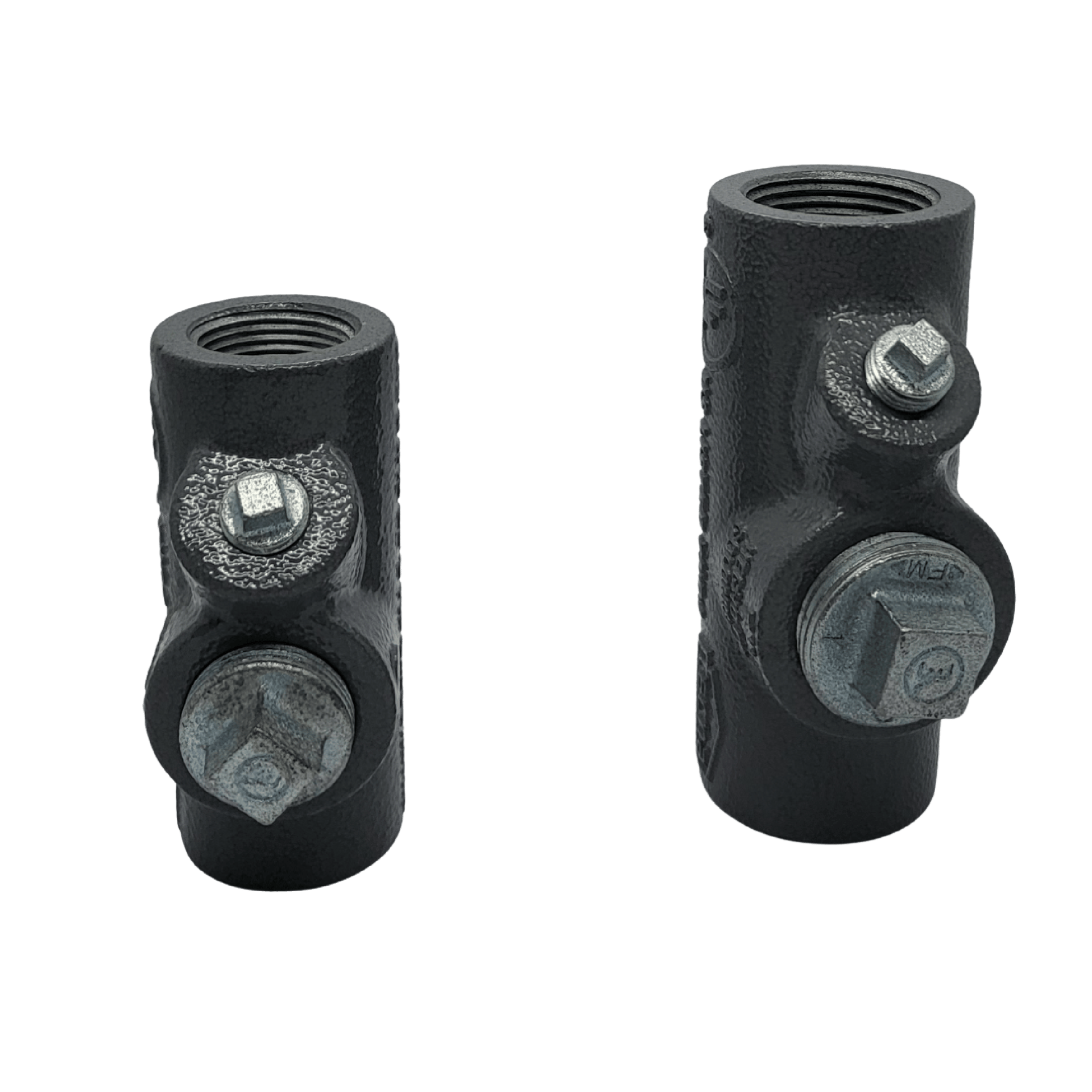

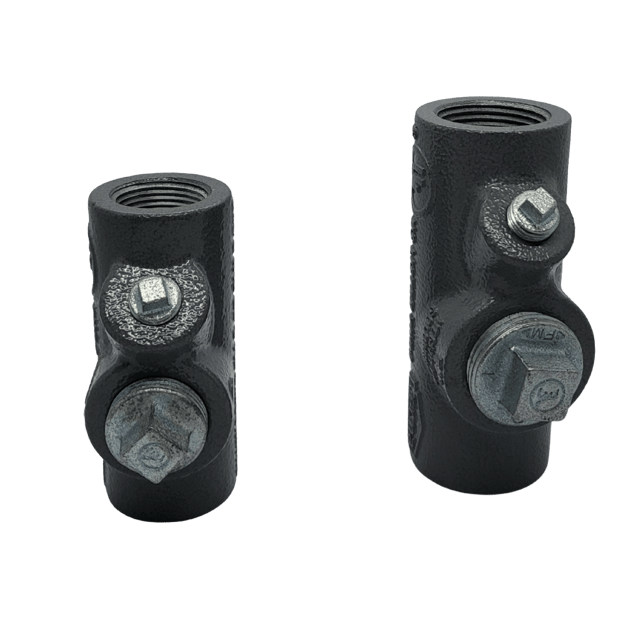

MaterialGrey iron or ductile iron
FinishHDG + zinc plated
Trade sizes1/2" - 4"
OrientationVertical or horizontal
Class IDivision 1 & 2, Groups C, D
Class IIDivision 1, Groups E, F, G
Class IIIDivision 1 & 2
Classifications shown for this model
Class 1 Division 1Class 1 Division 2Class 2 Division 1Industrial
Catalogue numbers & dimensions

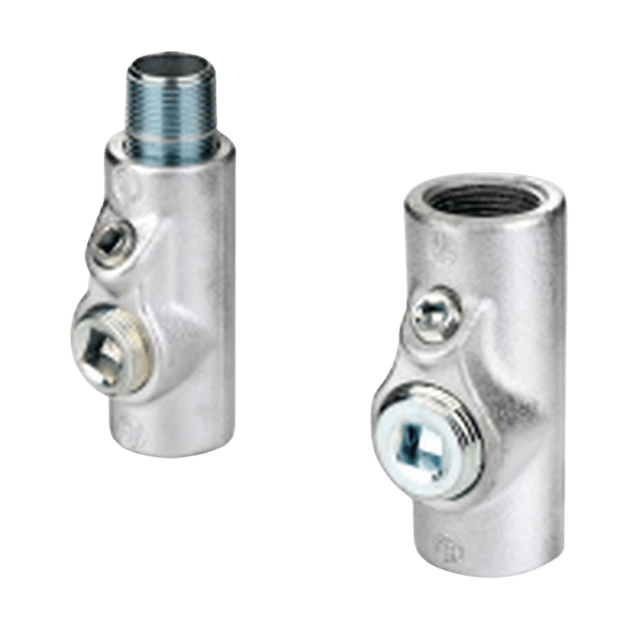

| CAT# | Trade Size | Dimension | Turning Radius | ||
|---|---|---|---|---|---|
| Female | Male & Female | A | B | ||
| EYS11 | EYS116 | 1/2" | 3.63 | 1.25 | 1.09 |
| EYS21 | EYS216 | 3/4" | 3.66 | 1.50 | 1.25 |
| EYS31 | EYS316 | 1" | 4.25 | 1.75 | 1.59 |
| EYS4 | EYS46 | 1-1/4" | 5.00 | 2.25 | 1.81 |
| EYS5 | EYS56 | 1-1/2" | 5.44 | 2.44 | 2.00 |
| EYS6 | EYS66 | 2" | 6.25 | 3.00 | 2.31 |
| EYS7 | EYS76 | 2-1/2" | 7.50 | 3.50 | 2.56 |
| EYS8 | EYS86 | 3" | 8.50 | 4.25 | 3.09 |
| EYS9 | EYS96 | 3-1/2" | 9.19 | 4.75 | 3.38 |
| EYS10 | EYS106 | 4" | 9.75 | 5.25 | 3.53 |

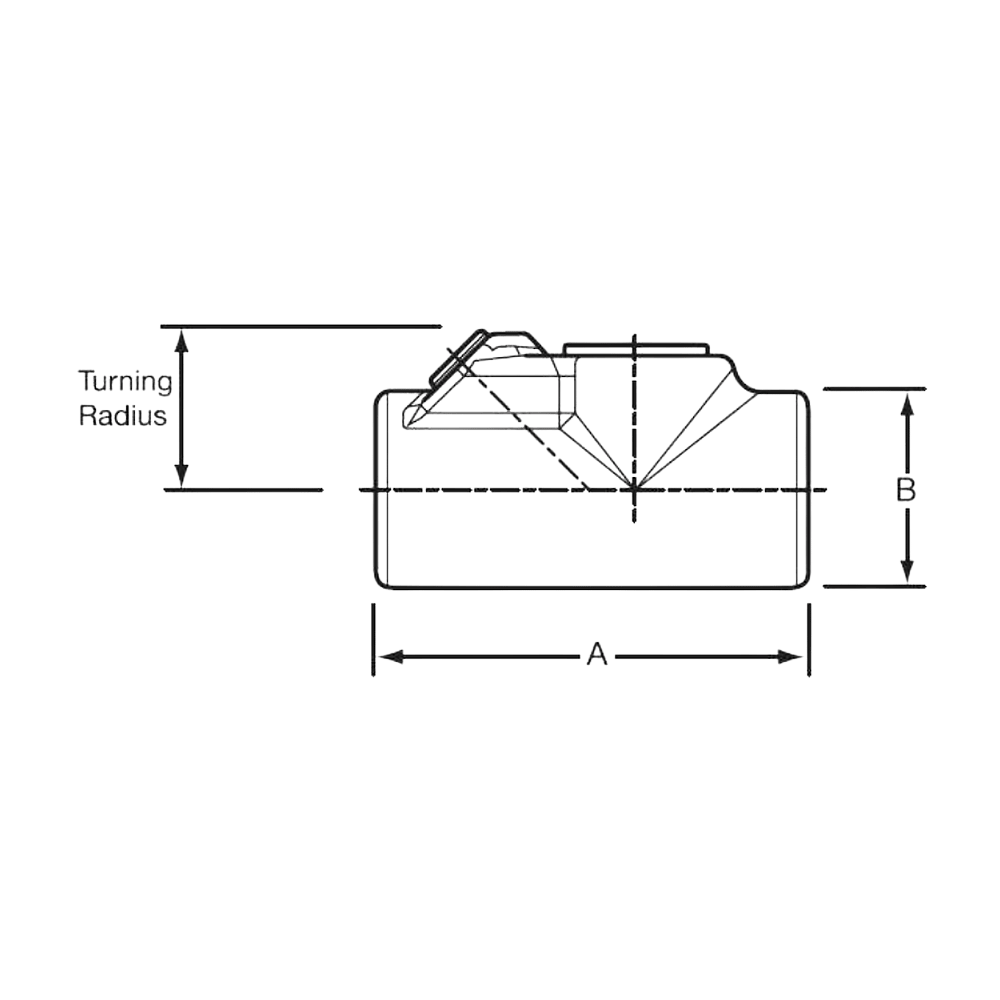

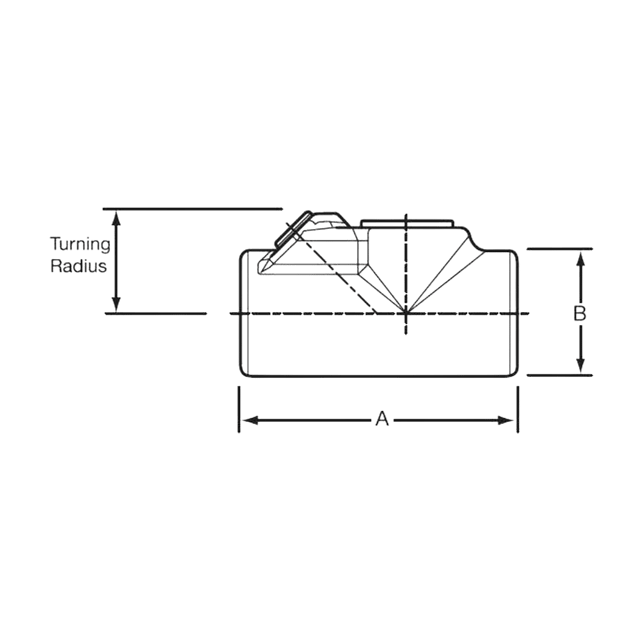

Dimension A is length, B is the hub. Dimensions in inches.
No public file is currently linked to this product. You can request the record for your configuration below.
Configuration-specific records
Request the exact record for your project
Documents can vary by catalogue number. Each request sends the product, your current configuration and the record type to our technical team.
Request the installation manual
Ask for instructions applicable to the selected model, mounting method and voltage.
Request a 2D/3D CAD model
Ask for the available dimensional drawing or 3D model for the exact catalogue number.
Request certification documents
Ask for the certification documents for the exact model you need.
Request a complete technical submittal
Ask our team to assemble the available data sheets, drawings, photometry and certification records.
