MaterialStainless steel 304 (1/2"-6"), brass (1/2"-2"), iron (2-1/2"-6")

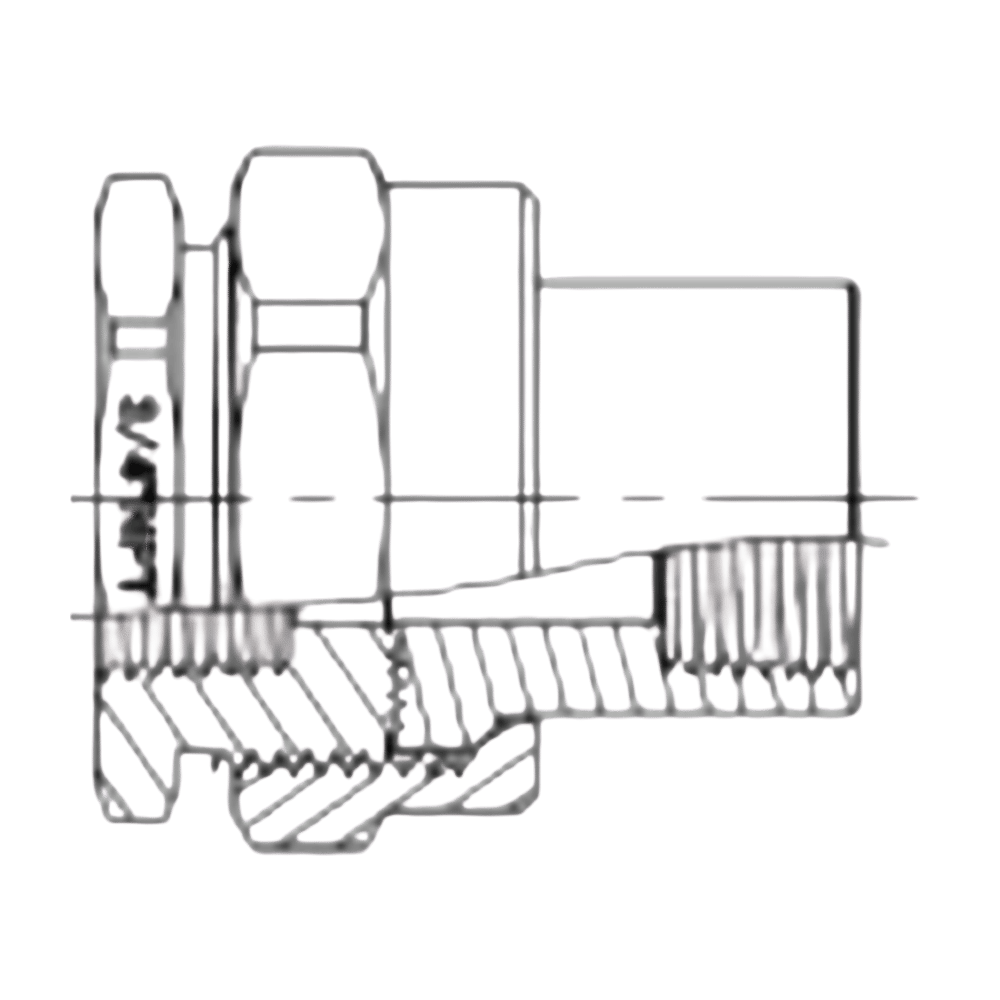

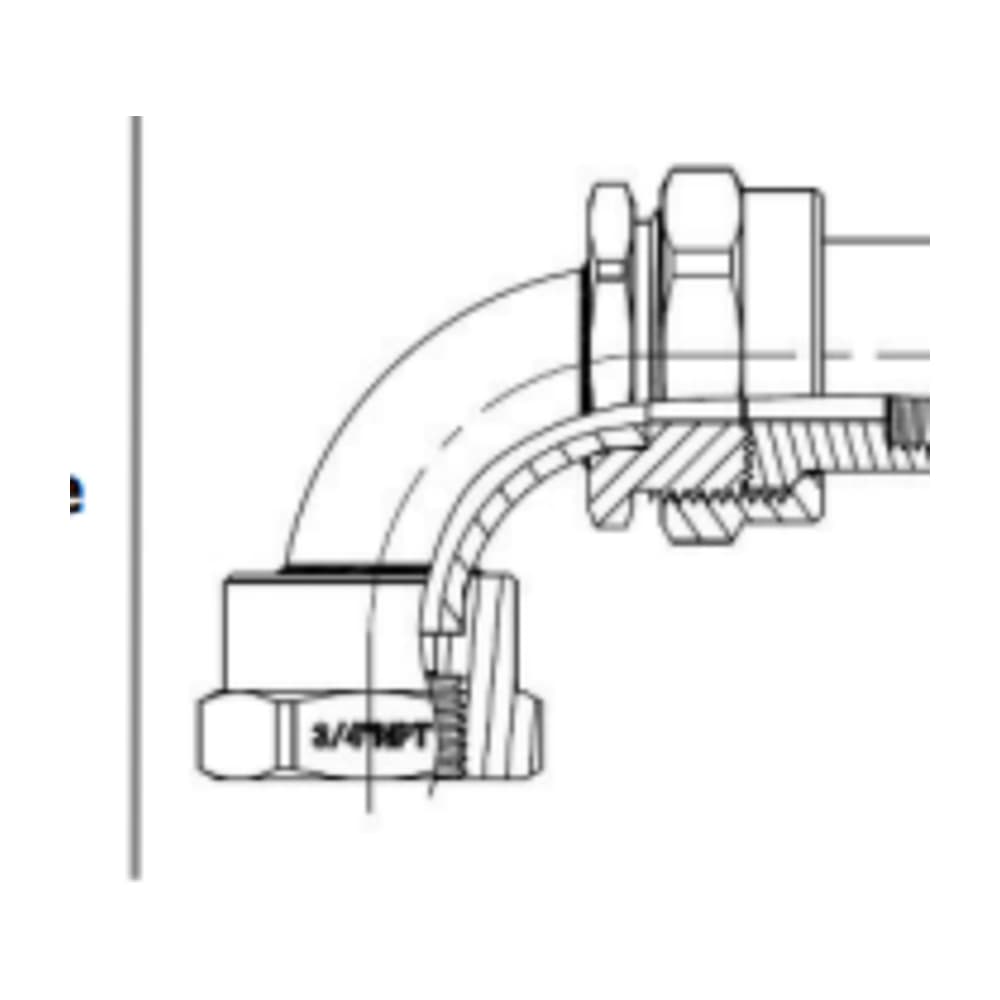

TypesKF-LK straight, KF-XG 90° elbow
Nominal sizes1/2" - 6"
End configurationsRotating F/F, M/M, F/M and M/F
Compression strengthMax 6,000 psi (1/2", 3/4"); max 1,200 psi (1"-2")
ThreadNPT, M
RoHSCompliant
CertificatecULus file no. E490826
Classifications shown for this model
Class 1 Division 1Class 1 Division 2Class 2 Division 1Industrial
Catalogue numbers & dimensions
| Nominal Conduit Size | M Thread | NPT Thread | LK pcs/box | XG pcs/box |
|---|---|---|---|---|
| 1/2" | M20x1.5 | 1/2" | 10 | 6 |
| 3/4" | M25x1.5 | 3/4" | 10 | 6 |
| 1" | M32x1.5 | 1" | 10 | 6 |
| 1-1/4" | M40x1.5 | 1-1/4" | 5 | 2 |
| 1-1/2" | M50x1.5 | 1-1/2" | 5 | 2 |
| 2" | M63x1.5 | 2" | 5 | 2 |
| 2-1/2" | M75x1.5 | 2-1/2" | 2 | 1 |
| 3" | M90x2 | 3" | 2 | 1 |
| 4" | M110x2 | 4" | 2 | 1 |
| 5" | M140x2 | 5" | 1 | 1 |
| 6" | M164x2 | 6" | 1 | 1 |
| Size | LK-F | LK-M | LK-F/M | XG-F | XG-M | XG-F/M |
|---|---|---|---|---|---|---|
| 1/2" | 2.9 | 3.7 | 3.2 | 3.0 | 3.0 | 2.8 |
| 3/4" | 3.8 | 4.6 | 4.3 | 4.2 | 4.0 | 3.9 |
| 1" | 5.3 | 7.6 | 6.4 | 5.8 | 6.1 | 5.4 |
| 1-1/4" | 3.5 | 4.6 | 3.9 | 2.6 | 2.7 | 2.4 |
| 1-1/2" | 4.1 | 5.7 | 4.9 | 3.2 | 3.3 | 3.0 |
| 2" | 5.8 | 8.1 | 6.5 | 4.6 | 4.9 | 4.3 |
Weights not published for 2-1/2"-6" or for the M/F configurations.
| # | Field | Codes |
|---|---|---|
| 1 | Category | KF - abbreviation of KAIFLEX |
| 2 | Type | LK: straight · XG: 90° elbow |
| 3 | Size | 1: 1/2" · 2: 3/4" · 3: 1" · 4: 1-1/4" · 5: 1-1/2" · 6: 2" · 7: 2-1/2" · 8: 3" · 9: 4" · 10: 5" · 11: 6" |
| 4 | Adapter type, both ends | F: rotating female to female · M: rotating male to male · F/M: rotating female to male · M/F: rotating male to female |
| 5 | Thread | 1: M · 2: NPT |
| 6 | Material | 1: Stainless steel 304 · 2: Brass · 3: Iron |
