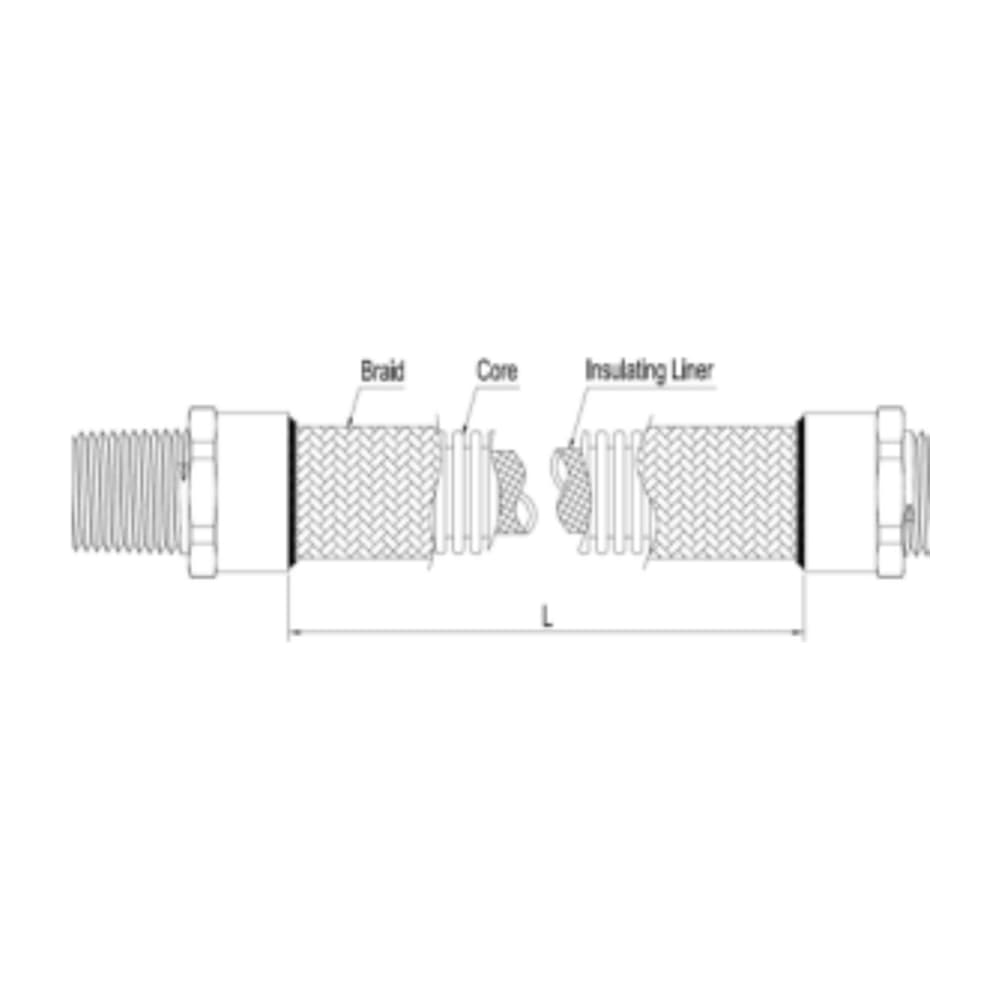

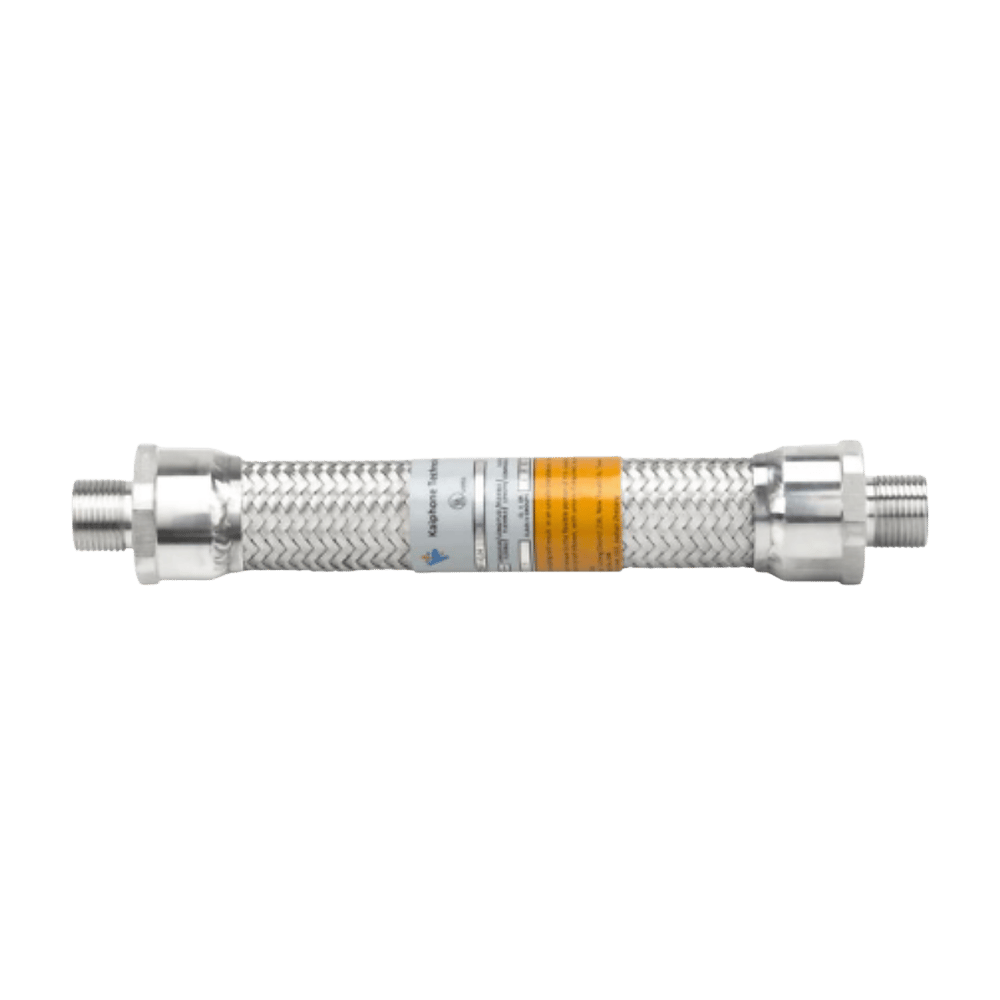

MaterialStainless steel braid, core and fittings
Fitting typesTwo male (-M), two female (-F), male to female (-F/M)
Nominal sizes1/2" - 2"
Length4" - 36" per UL specification
Compression strengthMax 2,000 psi (1/2", 3/4"); max 1,200 psi (1"-2")
ThreadNPT, M
RoHSCompliant
CertificatescULus E490826 · IECEx UL 20.0075U · ATEX DEMKO 20 ATEX 2393U Rev. 0 · TS TD09802U
Classifications shown for this model
Class 1 Division 1Class 1 Division 2Class 2 Division 1Industrial
Catalogue numbers & dimensions
| Nominal Size | Bending Radius (mm) | Available Lengths (in) | Class I Div 1 Groups |
|---|---|---|---|
| 1/2" | 254 | 4 - 36 | A, B, C, D |
| 3/4" | 305 | 4 - 36 | A, B, C, D |
| 1" | 356 | 6 - 36 | C, D |
| 1-1/4" | 406 | 12 - 36 | C, D |
| 1-1/2" | 406 | 12 - 36 | C, D |
| 2" | 406 | 12 - 36 | C, D |
Length limit 4"-36" per UL specification. Nominal 2" adopts a 1-1/2" conduit body. All sizes are also Class II Division 1, Groups E, F, G and Class III.
| Standard | Rating |
|---|---|
| UL 1203 · 1/2"-3/4" | Class I Div 1, Groups A, B, C, D |
| UL 1203 · 1"-2" | Class I Div 1, Groups C, D |
| UL 1203 | Class II Div 1, Groups E, F, G · Class III |
| IEC 60079 · 1/2"-4" | Ex db IIC Gb · Ex tb IIIC Db |
| ATEX · 1/2"-4" | II 2G Ex db IIC Gb · II 2D Ex tb IIIC Db |
| # | Field | Codes |
|---|---|---|
| 1 | Category | KF-GJH |
| 2 | Conduit size | 1: 1/2" · 2: 3/4" · 3: 1" · 4: 1-1/4" · 5: 1-1/2" · 6: 2" |
| 3 | Fitting type, both ends | M: two male · F: two female · F/M: male to female |
| 4 | Conduit length (in) | 4 · 6 · 8 · 10 · 12 · 15 · 18 · 21 · 24 · 27 · 30 · 33 · 36 |
| 5 | Thread | 1: M · 2: NPT |
| 6 | Core material | 1: Stainless steel |
IEC-only conduit sizes: 7: 2-1/2" · 8a: 3" · 8b: 3b" · 9: 4". Example: KF-GJH1M411 is 1/2", two male, 4", M thread, stainless steel.
