ModelsGATH-CH, GATH-A3, GATH-KL, GATH-TB
Class IDivision 2, Groups A, B, C, D
EnclosureWet locations, Type 4X, IP66
AdapterCopper-free aluminum
FinishPolyester powder coat
GasketSilicone
External hardwareStainless steel
MountingPendant, ceiling, wall, stanchion
Compatible LEDEX luminairesTITAN, RADIANT, FORTRESS, VANGUARD, JELLY, VECTOR, BASTION
Classifications shown for this model
Class 1 Division 2Industrial
Catalogue numbers & dimensions
| CAT# | Replaces | Pendant | Ceiling | Wall | Stanchion | Quad Mount |
|---|---|---|---|---|---|---|

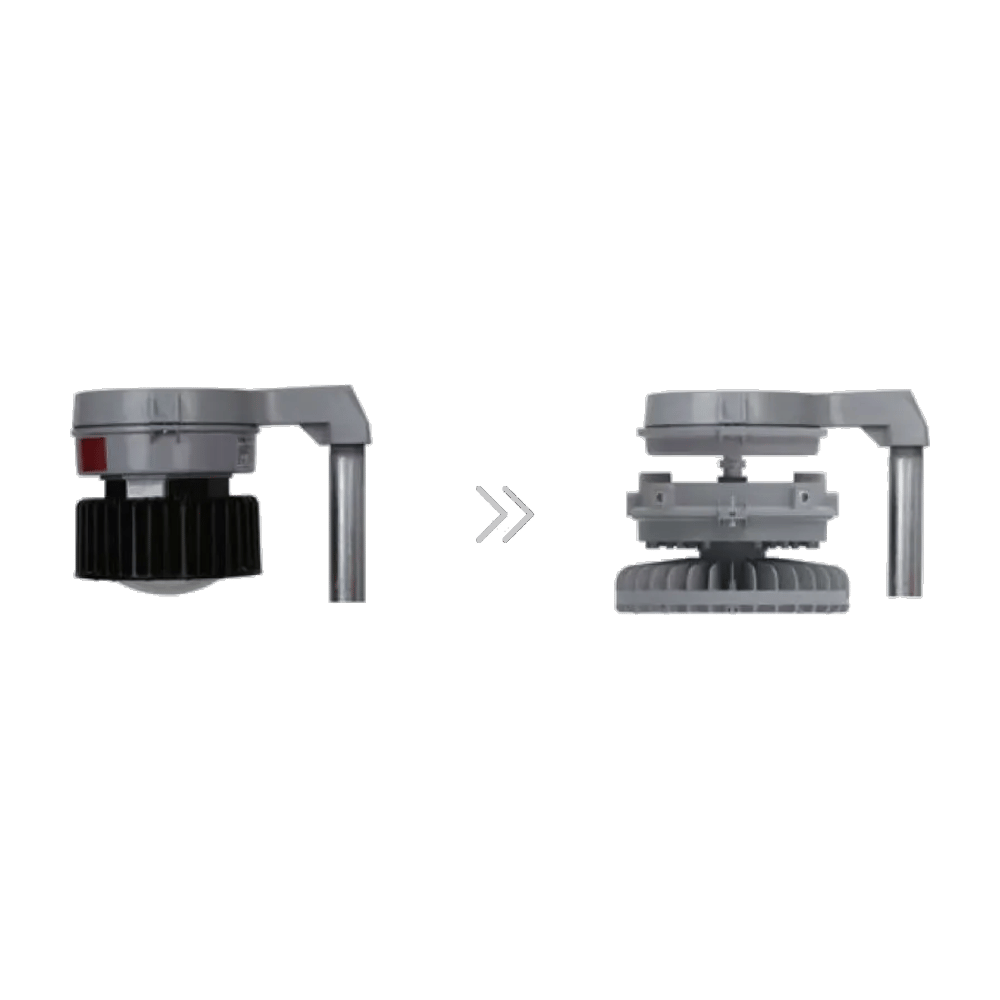

| GATH-CH | Eaton's Crouse-Hinds Champ® | APM2 APM3 HPM2 | CM2 CM3 | TWM2 TWM3 | JM5 PM5 | QM25 |
| GATH-A3 | Appleton® Mercmaster III | KPA-75, 100 KPAF-75, 100 KPCH-75, 100 | KPC-75 KPC-100 | KPWB-75 KPWB-100 | KPS-125 KPS-150 KPST-125 KPST-150 | — |
| GATH-KL | Killark® Certilite® & Certilite® V | VMA2B & VMA-2 VMA3B & VMA-3 VMC2B & VMC-2 VMC3B & VMC-3 VMF2B, 3B | VMX2B & VMX-2 VMX3B & VMX-3 VMX6B, 7B, 8B, 9B | VMB2B & VMB-2 VMB3B & VMB-3 | VMD4B VMD5B VMS5B | — |
| GATH-TB | Thomas & Betts Hazlux® | VP2 VP3 VA2 (Pendant Cone) VA3 (Pendant Cone) VF2 (Flexible Pendant) VF3 (Flexible Pendant) | VC2 VC3 | VB2 VB3 VB2-VIB VB3-VIB | VS4 VS5 VS4-VIB VS5-VIB VL4 VL5 VL4-VIB VL5-VIB | — |
Crouse-Hinds and Champ are trademarks of Eaton; Mercmaster of Appleton; Certilite of Killark; Hazlux of Thomas & Betts. Named for identification only — LEDEX is not affiliated with these manufacturers.
| CAT# | Replaces | mm (in) | ||
|---|---|---|---|---|
| Overall width | Overall height | Body Ø | ||

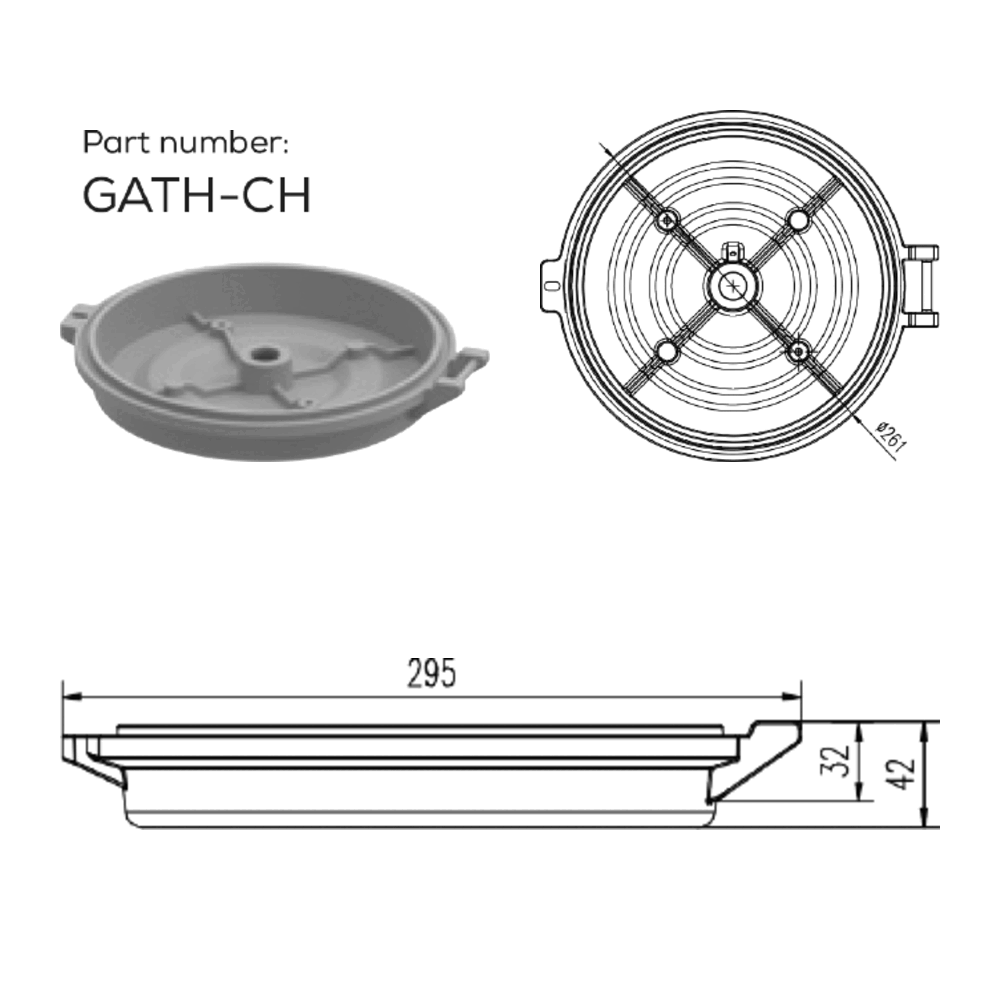

| GATH-CH | Crouse-Hinds Champ® | 295 (11.6) | 42 (1.65) | 261 (10.3) |

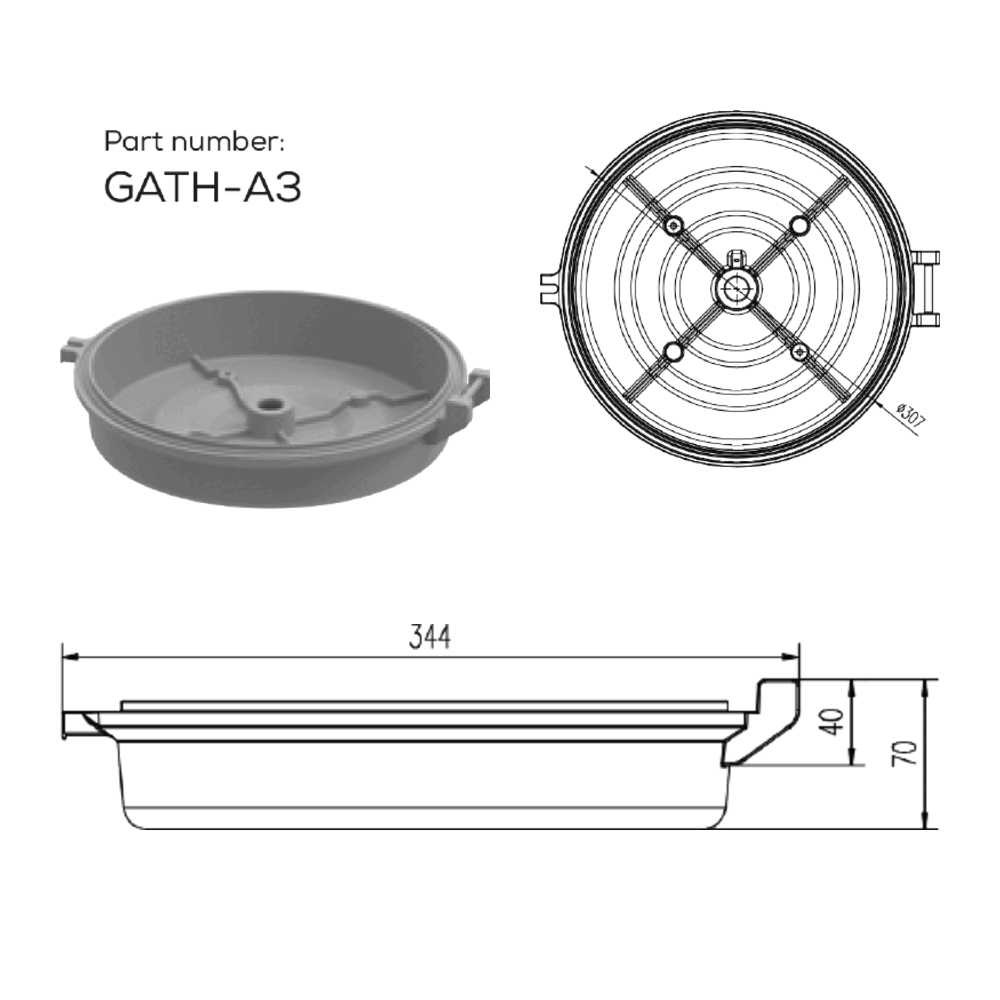

| GATH-A3 | Appleton® Mercmaster III | 344 (13.5) | 70 (2.76) | 307 (12.1) |

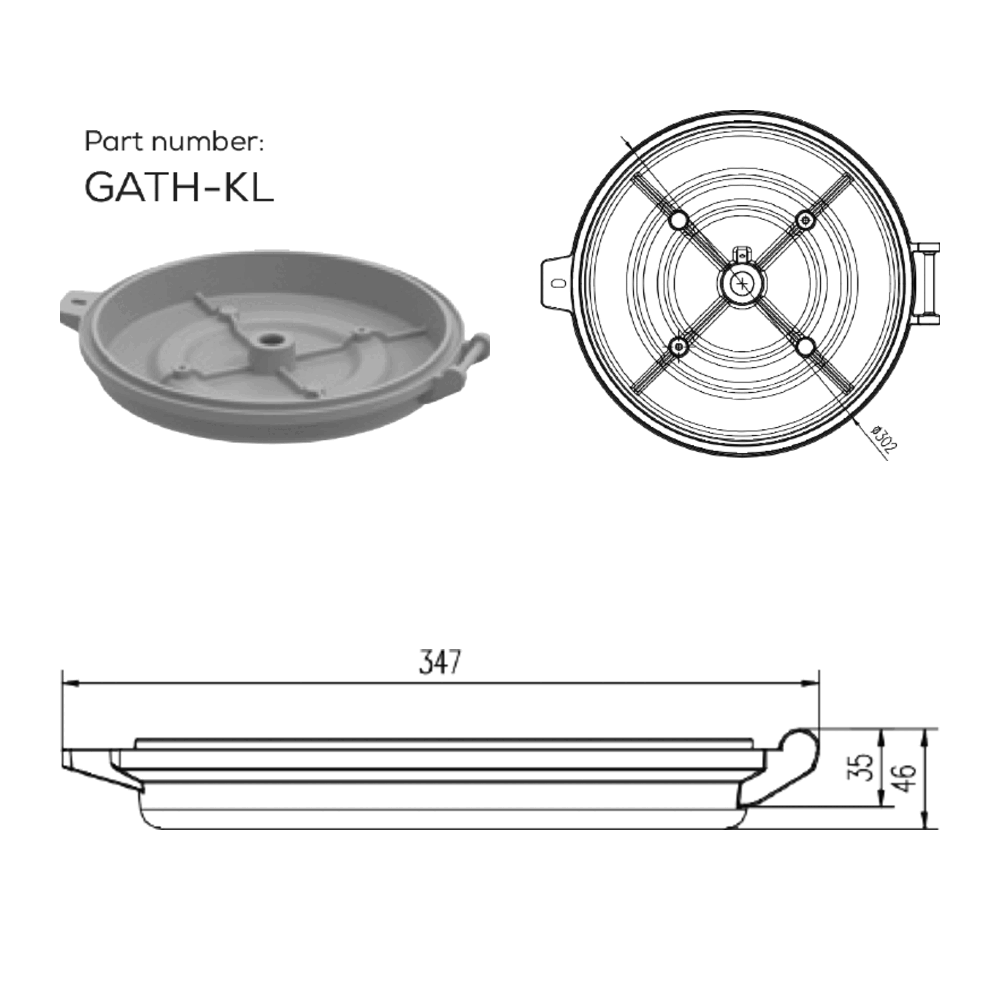

| GATH-KL | Killark® Certilite® | 347 (13.7) | 46 (1.81) | 302 (11.9) |

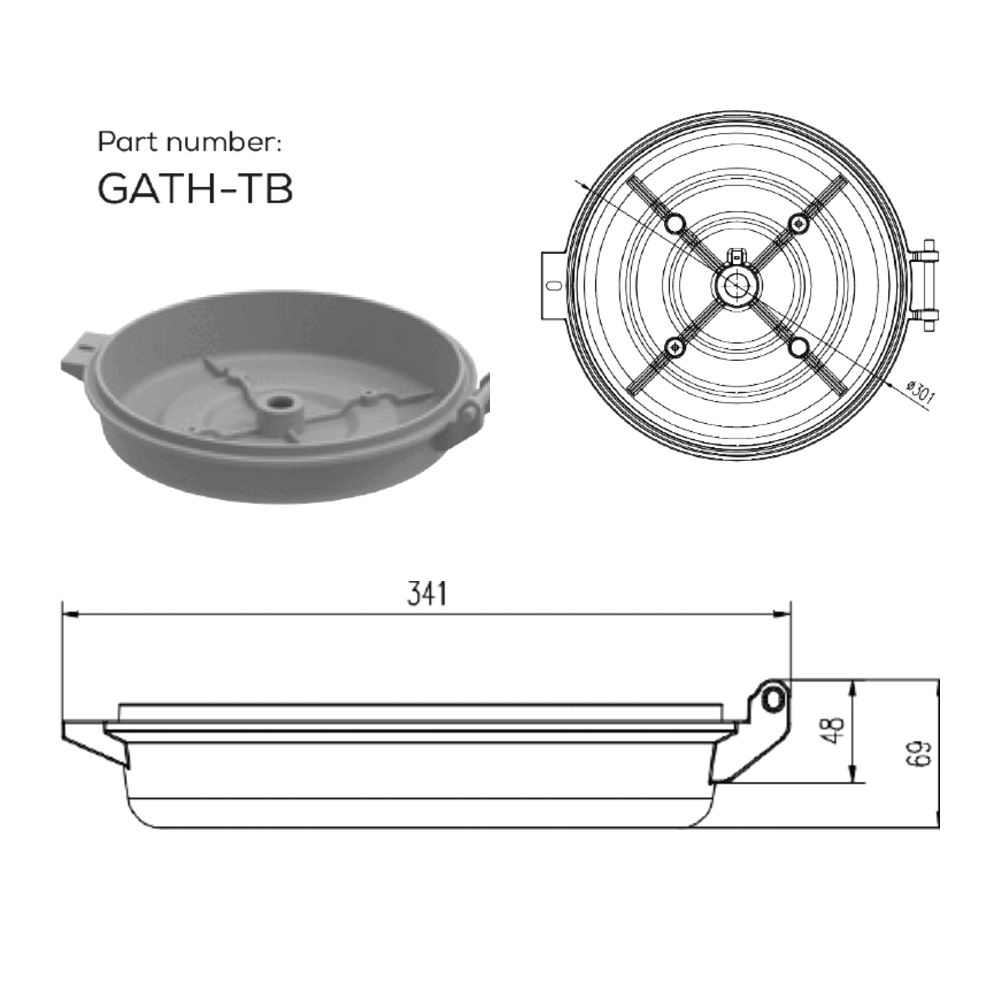

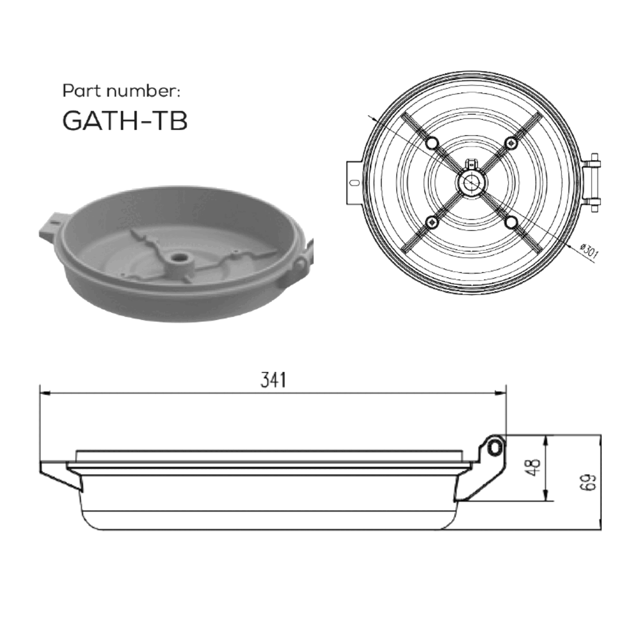

| GATH-TB | Thomas & Betts Hazlux® | 341 (13.4) | 69 (2.72) | 301 (11.9) |
Millimetres from the GATH data sheet; inches converted and rounded.
Specification Sheets & Brochures
Configuration-specific records
Request the exact record for your project
Documents can vary by catalogue number. Each request sends the product, your current configuration and the record type to our technical team.
Request the installation manual
Ask for instructions applicable to the selected model, mounting method and voltage.
Request a 2D/3D CAD model
Ask for the available dimensional drawing or 3D model for the exact catalogue number.
Request certification documents
Ask for the certification documents for the exact model you need.
Request the exact IES file
Ask for photometry matching the selected wattage, optics and fixture configuration.
Request a complete technical submittal
Ask our team to assemble the available data sheets, drawings, photometry and certification records.
Related Models
Related Lighting Solutions
Other LEDEX models worth comparing, with their classifications and output levels.
Frequently Asked Questions
What engineers and distributors ask most often before specifying the GATH Retrofit Adapter.
Explosion-proof lighting uses a certified enclosure or protection method to keep an ignition inside the equipment from reaching a surrounding explosive gas or vapour atmosphere. The term does not make a fixture suitable for every hazardous location. Under CEC Section 18, the exact product must match the documented Zone or Division, gas or dust group, surface-temperature limit, ambient range and wiring method.
